ScanfM (Scan from Motion): A compact 3D scanning system using motion-based image reconstruction.

info

Author: Chințoiu Vlăduț-Andrei
GitHub Project Link: https://github.com/UPB-PMRust-Students/project-GameSkyRO

Description

ScanfM is a hardware-software system designed to bridge the gap between the physical and digital worlds through 3D reconstruction. Using Structure from Motion (SfM), the project utilises an STM32F767ZI microcontroller and an ESP32-CAM module to capture and transmit a series of precisely angled photographs of a physical object.

The object is placed on a rotating platform controlled by a servomotor, while a fixed ESP32-CAM module captures images at defined intervals. These images are triggered and ordered by the STM32 board and transmitted for processing on a PC, where the 3D model is reconstructed using SfM algorithms. ScanfM enables 3D scanning with a clean separation between data acquisition (on-device) and processing (on-host).

Motivation

For as long as I can remember, I’ve been passionate about games and game development, especially in 3D. Initially, I was drawn to coding, thinking it was the heart of game creation. But I soon discovered that game development involves much more than writing code. In fact, 3D modeling, rigging, and animation are often the real creative and technical challenges.

Curious, I began exploring the world of 3D design. While my main passion still lies in programming, this new dimension of development sparked my interest. That curiosity led me to this project: one that aims to bridge the gap between the physical and digital worlds.

Objects are central to our existence, from housing and food to tools and entertainment. While we can’t always reshape the real world to match our imagination, the digital world knows no limit. To truly create, however, we need a foundation - a reference. This is where my 3D scanner comes in: a way to digitize real-world objects and bring them into the creative realm as manipulable assets for design, games, or visualization.

Architecture

Main components:

  • STM32F767ZI board - handles the timing and processing of images during the 3D scanning process
  • ESP32-CAM module - captures grayscale images of the object being scanned

Secondary components

  • Servomotor - rotates the object at precise angles to capture images from multiple perspectives.
  • Button - initiates the 3D scanning sequence when pressed
  • Lights - provides optimal illumination to enhance the contrast between the object and its background

Connections:

  • ESP32-CAM <-> STM32 : SPI
  • STM32 <-> PC : UART
  • STM32 <-> Secondary components : PWM/Digital

Architecture diagram

Log

Week 21 - 27 April

Established communication between the ESP32 and the STM board via SPI, along with connectivity between the ESP32 and my computer.

Week 28 April - 4 May

Tested functionality of ESP32-CAM module and different image formats.

Week 5 - 18 May

Worked on SPI communication without success between the ESP32-CAM and the STM32.

Week 19 - 25 May

Established communication between the ESP32-CAM, STM32 and PC via SPI and UART. Successfully established the reception of images.

Week 26 - 29 May

Added the starting sequence button, lights and overall physical form of the project (using 3D parts).

Hardware

Hardware Setup

Hardware Setup

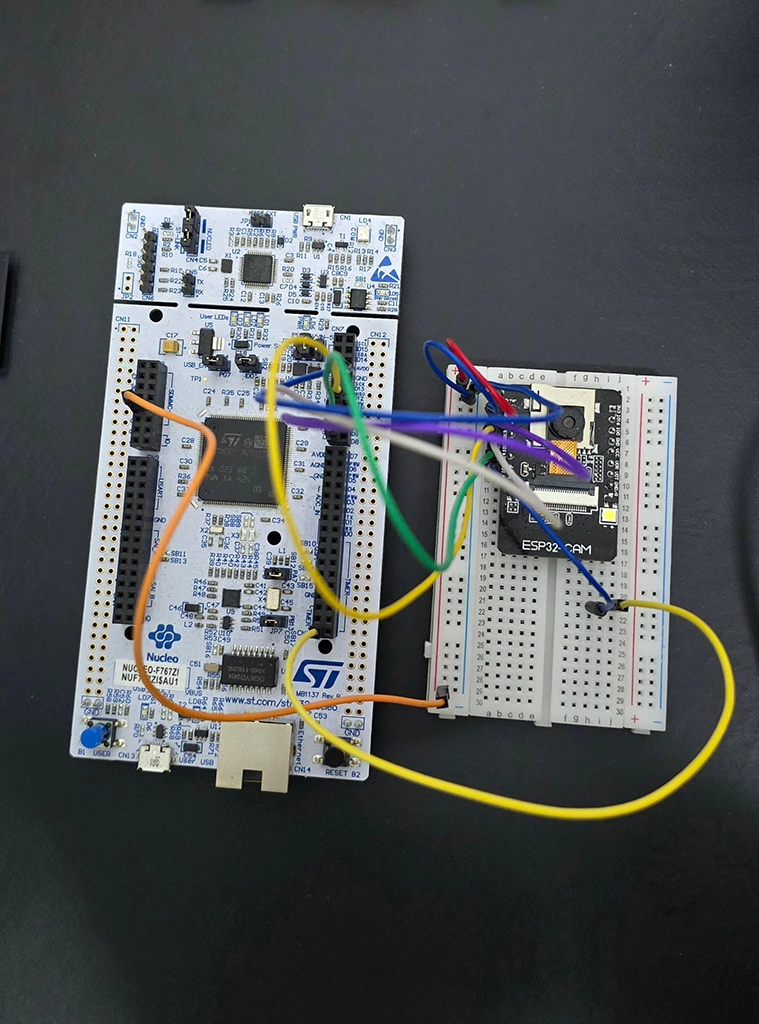

  • STM32F767ZI Board: Acts as the central controller, responsible for timing the capture of images and processing them. It coordinates the system and sends commands to other components.
  • ESP32-CAM Module: A camera module used to capture grayscale images of the object. It is connected to the STM for image acquisition.
  • Servomotor: A motor used to rotate the object at precise angles to allow for multiple image captures from different perspectives.
  • Button: Initiates the 3D scanning sequence when pressed, triggering the system to start the image capture process.
  • Lights: Provide necessary illumination to enhance the contrast between the object and the background for clearer image capture.

Schematics

KiCad Schematic KiCad Scheme

Bill of Materials

DeviceUsagePrice
STM32F767ZIMain microcontroller136 RON
ESP32-CAM ModuleCamera module62 RON
Servomotor SG90Servomotor10 RON
MM Jumper CablesCables6 RON
MF Jumper CablesCables6 RON
FF Jumper CablesCables7 RON
ResistorsResistors15 RON

Software

LibraryDescriptionUsage
embassy-stm32Modern, lightweight, and safe async framework for embedded systemsUsed for async task handling and peripheral management
defmt-rttEfficient, deferred formatting for logging on embedded systemsUsed for debugging
heaplessHeapless, static friendly data structuresUsed for image storage
smart_ledsThe end user crate for smart leds (like ws2812)Used as a dependency for ws2812_spi
ws2812_spiUse ws2812 on rust with embedded-hal spiUsed to control the LED ring light
