STM32 Retro Console

A portable gaming console in Rust, featuring a custom BIOS, a virtual machine emulating CHIP-8 ISA, and a game library loaded from an SD card.

info

Author: Andreescu Ovidiu-Ștefan
GitHub Project Link: https://github.com/UPB-PMRust-Students/project-dm-2025-ovidiu-andreescu

Description​

The STM32 Retro Console is a handheld embedded system designed to run classic retro games on resource-constrained hardware. It is built around the STM32F767ZI microcontroller and implements a complete CHIP-8 virtual machine capable of executing game logic, handling input, graphics, and sound in real time.

The system boots into a custom BIOS shell that initializes all peripherals and provides a simple menu interface for selecting game ROMs stored on an SD card. The BIOS manages SD card access, on-screen navigation, and basic user feedback before transferring control to the virtual machine.

Game graphics are rendered on a 128Γ—64 OLED display via IΒ²C, user input is handled through a matrix keypad connected to GPIO pins, and sound effects are generated using a PWM-controlled buzzer.

Motivation​

I chose this project to validate the full embedded development stack in Rust, from hardware bring-up to application logic. Specifically, I wanted to:

  • Use a virtual machine (CHIP-8) to understand low-level instruction parsing.
  • Create a complete system that boots independently and manages a file system, rather than running a single hardcoded script.
  • Demonstrate interactivity by integrating display drivers, audio feedback, and matrix keypad input into a single portable device.

Architecture​

The system architecture is centered around the STM32F767ZI microcontroller, which acts as the host for the CHIP-8 interpreter.

Main Components & Connections:

  1. Core System (STM32): Handles the fetch-decode-execute cycle of the VM and manages peripheral timing.
  2. Storage Subsystem: An SD Card Module connects via SPI to provide a dynamic file system. The BIOS reads this to list and load .ch8 ROM files into RAM.
  3. Human Interface (Input): A 4Γ—44\times4 Matrix Keypad is scanned via GPIO to map physical button presses to the 16-key CHIP-8 layout.
  4. Human Interface (Output):
  • OLED Display: Connects via I2C/SPI to render the 64Γ—3264\times32 monochrome graphics buffer.
  • Passive Buzzer: Connects via PWM/GPIO to generate simple square wave tones for game sound.

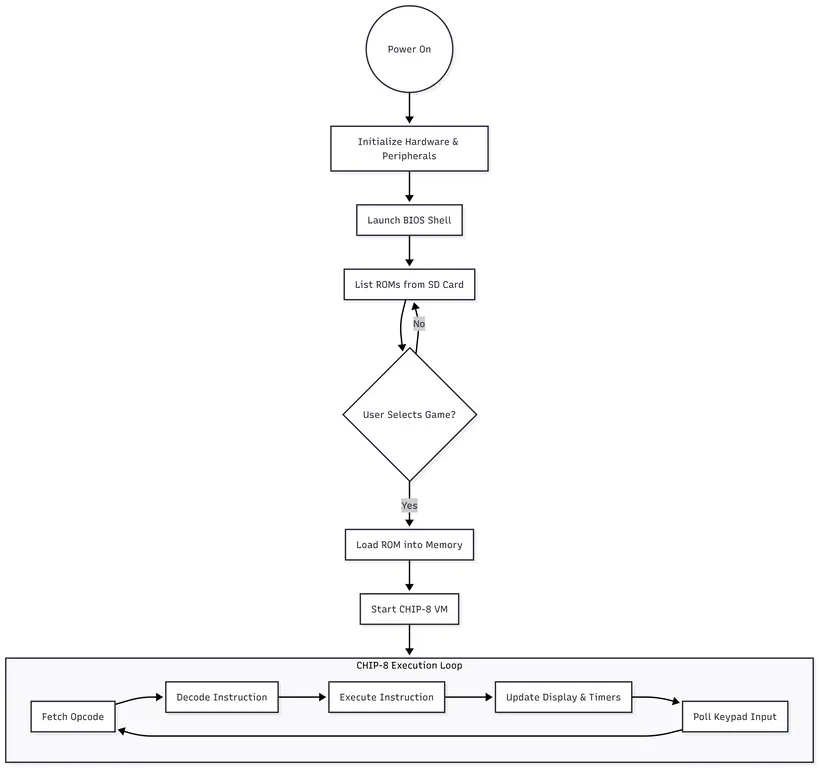

Architecture Block Diagram

Log​

Week - 15 December - 21 December​

Focused on hardware bring-up and initial validation. Connected and verified all peripheral components (STM32F767ZI, OLED display, keypad, SD card module, buzzer). Implemented and tested low-level initialization code for GPIO, I2C, SPI, timers, and PWM to ensure stable communication with all devices.

Week - 29 December - 4 January​

Designed and implemented the BIOS layer. Developed the display driver integration, keypad scanning logic, and basic audio feedback. Implemented the SD card initialization and filesystem access logic, including directory scanning and file selection, and added a fallback.

Week - 5 January - 11 January​

Integrated the BIOS with the main application logic. Connected the BIOS ROM loader to the CHIP-8 virtual machine, ensured correct memory loading and execution flow, and implemented input mapping between the physical keypad and the CHIP-8 key layout. Refined timing, rendering, and control handoff between BIOS and emulator.

Week - 12 January - 18 January​

Focused on testing, debugging, and performance improvements. Fixed issues related to SD card reliability, opcode handling, input responsiveness, and display update speed. Tuned execution and rendering frequency, validated multiple CHIP-8 games, and ensured stable gameplay across different ROMs.

Hardware​

The project utilizes an STM32F767ZI Nucleo-144 board as the central processing unit, interfacing with a 128x64 OLED display via SPI/I2C for video output. User interaction is handled through a 4x4 matrix keypad scanned via GPIO, while game assets are loaded dynamically from an SD card module and audio is output through a passive buzzer.

Schematics​

KiCAD Schematic Placeholder

Bill of Materials​

DeviceUsagePrice
[STM32F767ZI Nucleo]The main microcontroller board~130 RON
[1.3" OLED Display]128x64 Screen for rendering game graphics~25 RON
[4x4 Matrix Keypad]User input for game controls (16 keys)~10 RON
[SD Card Module]Interfacing with the SD card to load ROMs~10 RON
[Passive Buzzer]Audio feedback (beeps/tones)~12 RON

Software​

LibraryDescriptionUsage
stm32f7xx-hal + embassyHardware Abstraction LayerConfigures GPIO, SPI, and Timers for the STM32F7
embedded-graphics2D graphics libraryDrawing pixels and text to the display buffer
ssd1306Display DriverInitializes and sends data to the OLED screen
embedded-sdmmcFile System LibraryReading FAT32 file systems on the SD card
cortex-m-rtRuntime CrateStartup code and entry point for bare metal execution
  1. CHIPnGo - Inspiration
  2. chip8stm32 - Inspiration
  3. Cowgod's CHIP-8 Technical Reference
