Rogue Rust

A turn based rpg implemeting sensors for various functions on a pico 2w.

info

Author: Denis-Iulian Pavel
GitHub Project Link: https://github.com/UPB-PMRust-Students/project-denis-iulian-pavel

Description

My project will be a game coded completely in rust designed to run on a Pico 2W with 8 buttons (Left, Right, Up, Down, A, B, C and D), Temp Sensor, Accel Sensor.

Motivation

I chose this project because I decided to implement a multiple features and utilize all aspects I've studied up until now in the lab, in rust on a microprocessor like the Pico 2W.

Architecture

Raspberry Pi Pico 2W to:

• RGB_TFT LCD Screen 128x160
• A, B, C, D buttons
• Left, Right and Up, Down buttons
• Buzzer
• Temperature Sensor
• Acceleration Sensor

Log

Week 5 - 11 May

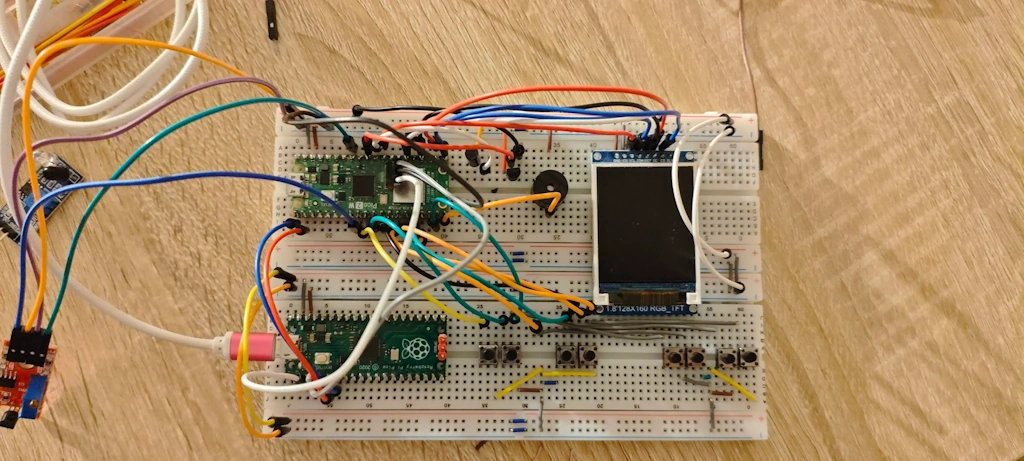

Established main board connections. Connected debugger, main board, a b c d buttons, screen and buzzer. Wrote code to initialize and test functionality for these. Wrote a script to display chroma keyed sprites on the screen so I can use background images and one to play sounds for the buzzer.

Week 12 - 18 May

Purchased sensors. Scrapped joystick and replaced with buttons. Established connections between the rest of the components.

Week 19 - 28 May

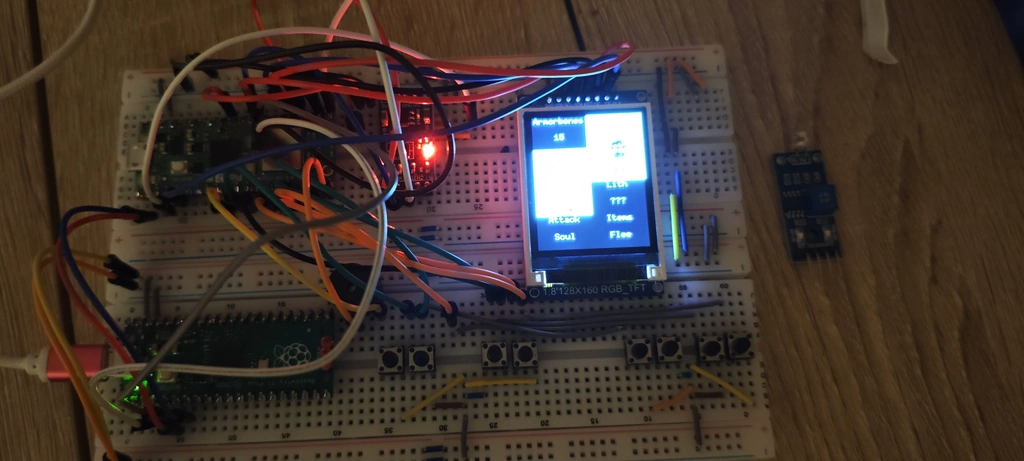

Named the game RogueRust. LithTheFox from the boot screen is my alias. Chose new sensors, initialized accel sensor but it is unable to read properly Created main game loop, character sprites, creatures as well as gameplay base off this. The final board being:

Hardware

Raspberry Pi Pico 2W, Buttons, Screen (rgb_tft 128x160), Temperature Sensor, Acceleration Sensor.

Schematics

Bill of Materials

Device	Usage	Price
Raspberry Pi Pico 2W	The main controller	39.66 RON
Electronic Components Kit	Basic Components	15.63 RON (SALE)
1.8-inch SPI TFT Module LCD Display	Screen	15.45 RON (SALE)
Breadboard HQ (830 Puncte)	Extra Breadboard	9.98 RON (DELISTED)
ADXL345 Digital 3-Axis Accelerometer Module	Various Velocity Interactions	12.99 RON
LM35D Analog Temperature Sensor	Randomization elements	4.99 RON
Total Cost	Full price for the hardware	98.70 RON

Software

Library	Description	Usage
tinybmp	no_std BMP decoder	Decode BMP sprite and background images
embedded-text	Text layout and rendering on embedded-graphics	Render aligned or wrapped text boxes
adxl345_driver2	Driver for ADXL345 3-axis accelerometer	Read acceleration data for motion or controls
itoa	Integer-to-ASCII formatter without pulling in core::fmt	Fast, heapless number-to-string conversion
embassy-executor	Async/await task executor for Cortex-M	Drive embedded async tasks with interrupts or threads
embassy-rp	RP2040 HAL integration with async support	Interface Raspberry Pi Pico 2W peripherals asynchronously
embassy-time	Timekeeping, delays, and scheduling for embedded async	Sleep, timeouts, and uptime timestamps
embassy-usb	Async USB device stack	Implement USB CDC, HID, or custom USB classes
embassy-sync	Async-aware synchronization primitives	Share data safely between concurrent async tasks
embassy-futures	no_std futures and combinators	Lightweight future utilities without heap allocation
embassy-embedded-hal	Bridges embedded-hal traits into async	Use HAL traits inside async contexts
embedded-graphics	2D drawing primitives for embedded displays	Draw pixels, shapes, and fonts on TFT or OLED screens
display-interface-spi	SPI abstraction for display drivers	Send commands/data to SPI-based screens
mipidsi	Generic MIPI-DSI display driver	Drive TFT displays over SPI/MIPI-DSI
defmt	Efficient embedded logging framework	Log debug/info messages via RTT or semihosting
defmt-rtt	RTT transport layer for defmt	Transfer log frames over SWO/JTAG via RTT
fixed	Fixed-point numeric types	Perform fractional math without floating-point support
fixed-macro	Macros for defining fixed-point constants	Write fixed-point literals conveniently
static-cell	Statically allocated, runtime-initialized cell	Safely init global data without dynamic allocation
heapless	Fixed-capacity data structures (Vec, String, etc.)	Store collections and buffers without alloc
embedded-hal-1	Blocking HAL traits for embedded peripherals	Define SPI, I²C, GPIO, and other blocking interfaces
embedded-hal-async	Async variants of embedded-hal traits	Non-blocking SPI, I²C, UART in async contexts
embedded-io-async	Async I/O traits for embedded read/write	Stream/sink traits for sensors and comm interfaces
cortex-m-rt	Cortex-M runtime startup and interrupt support	Set up vector tables, entry point, and reset handlers
panic-probe	Panic handler that prints backtraces via defmt	Catch and report panics on embedded targets
byte-slice-cast	Safe reinterpretation of byte slices	Cast between &[u8] and &[T] without unsafe code

Links

RogueRust Alpha Demo
