SentinelGuard
Author: Andreescu Andrei-Vlad
GitHub Project Link: https://github.com/UPB-PMRust-Students/project-AndreiAndreescu
Description
i want to make a project that activates a system alarm when something enters in a zone where is a movement sensor a laser sensor and a light sensor and then it gives me an email with the the time spend in the zone at the time that the alarm activated
Motivation
For me an alarm system is very interesting so to do one is absolutly grandious

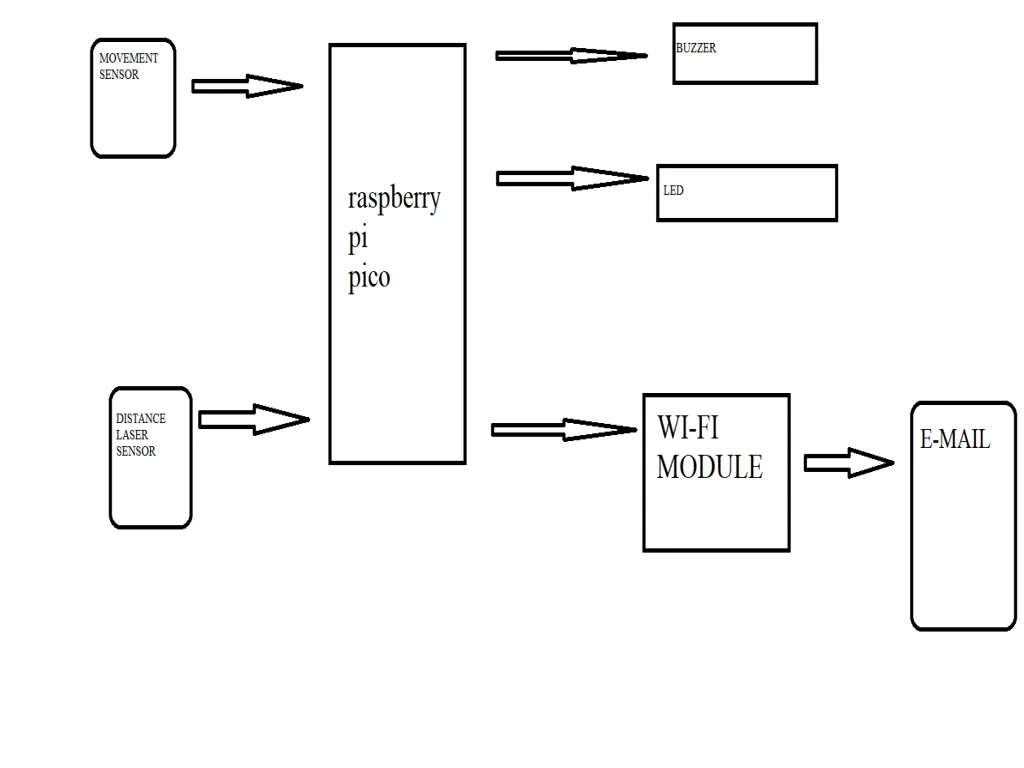

Architecture
Log
Week 6 - 12 April
Research for components
Week 13 - 19 April
Buying the components
Week 19 - 25 April
Documentation
Week 12 - 16 May

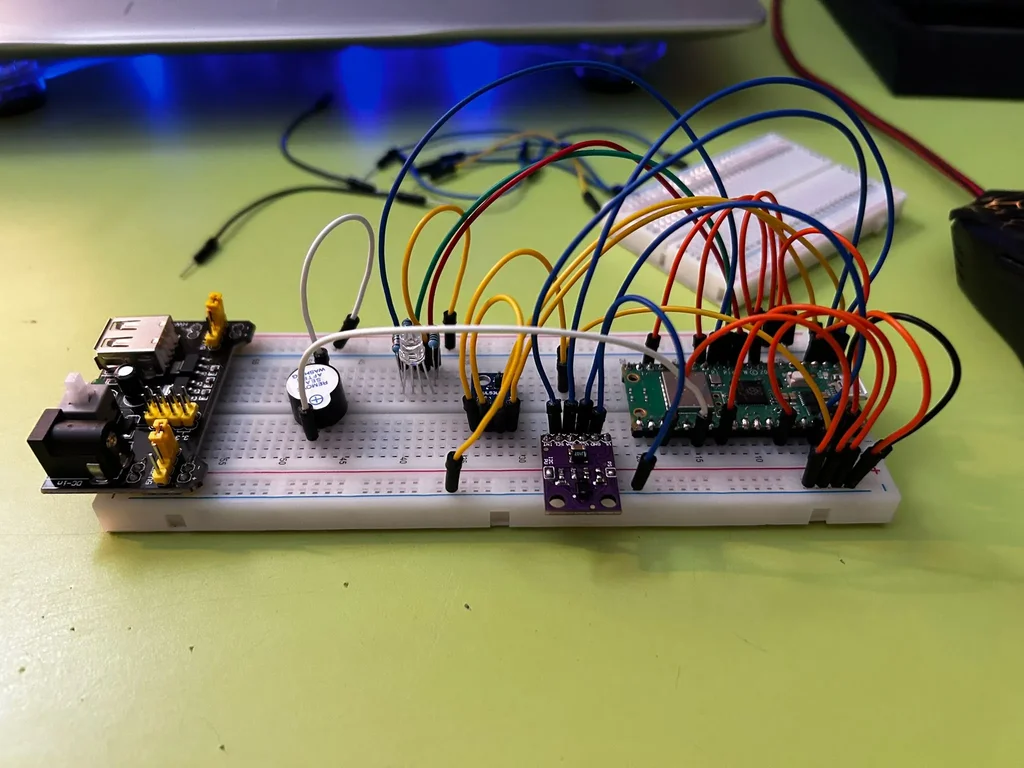

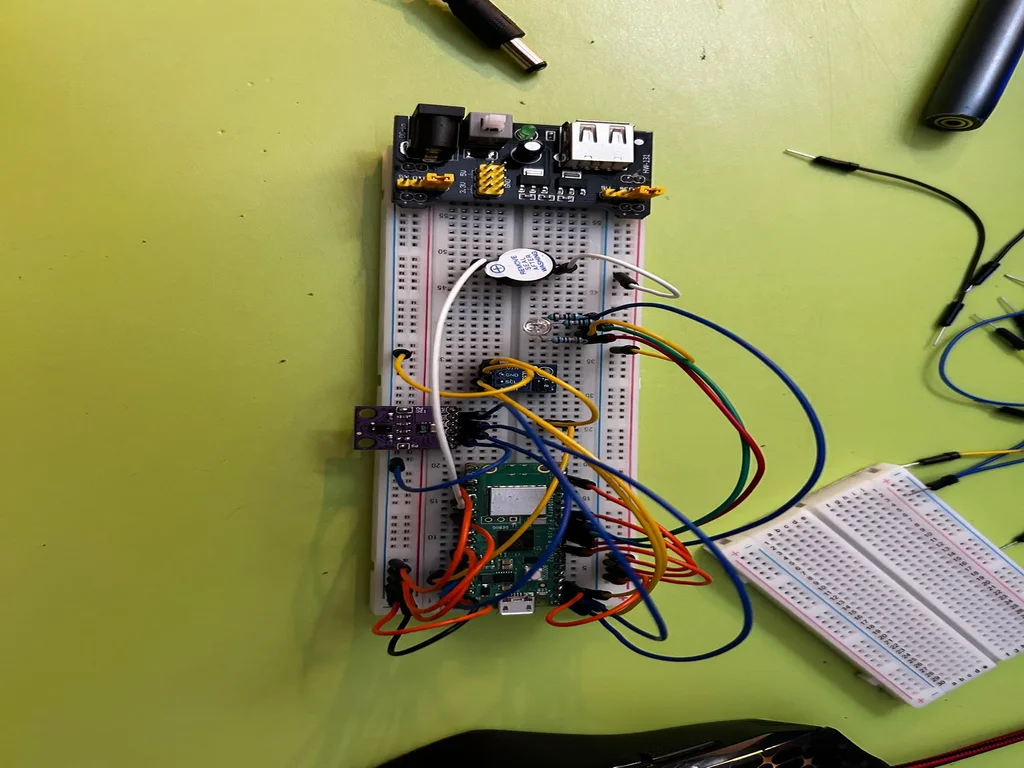

Hardware
Hardware
Raspberry Pi Pico W (SC0918): Microcontroller board based on the RP2040 microcontroller chip.
APDS-9960 Light Sensor: Digital RGB, ambient light, and gesture sensor with I2C interface.
VL53L0X Distance Laser Sensor: Time-of-flight (ToF) laser-ranging sensor for measuring distances with an I2C interface.
RGB LED: Light-emitting diode capable of producing various colors, typically with common cathode/anode configuration.
Buzzer: Electromechanical component that produces sound when activated, usually by applying an alternating current.

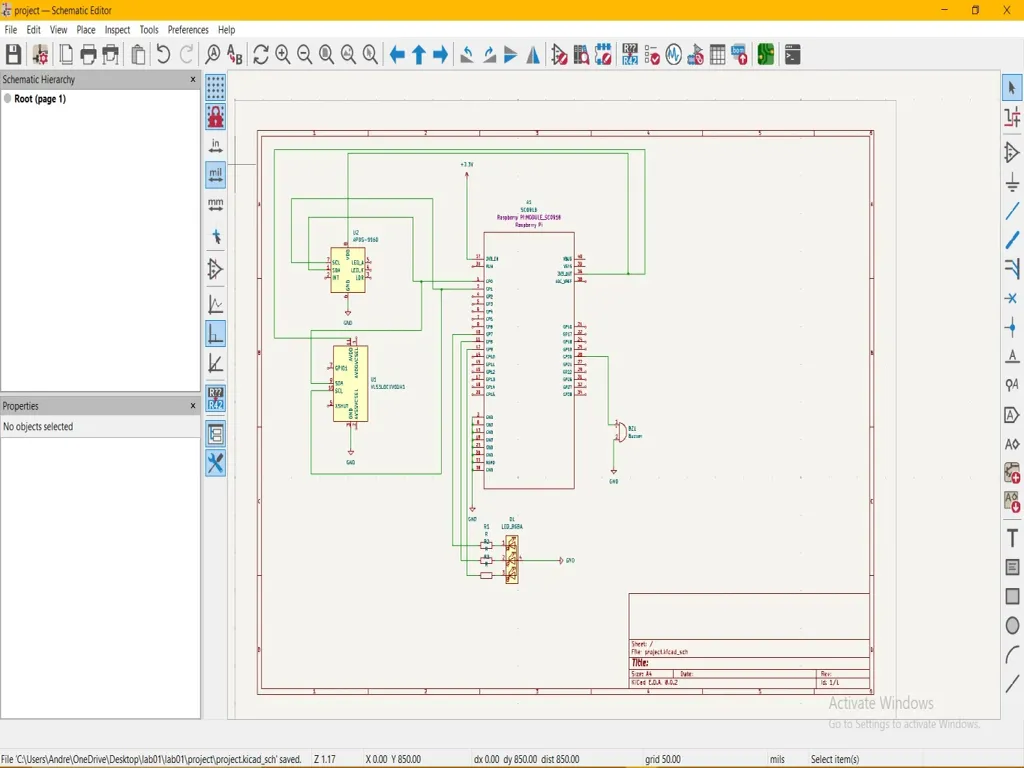

Schematics
Bill of Materials
Rapspberry Pi Pico W Light sensor and movement sensor Laser distance sensor Rgb led Buzzer Power supply
| Device | Usage | Price |
|---|---|---|
| Rapspberry Pi Pico W | The microcontroller | 35 RON |
| Light sensor and movement sensor | [21 RON] | |
| Laser distance sensor | [16 RON] |
Software
| Library | Description | Usage |
|---|---|---|
| st7789 | Display driver for ST7789 | Used for the display for the Pico Explorer Base |
| embedded-graphics | 2D graphics library | Used for drawing to the display |
