Sudoku Game

Play sudoku using a Raspberry Pi Pico 2W and a keyboard module

info

Author: Laura Florentina Sandu
GitHub Project Link: https://github.com/UPB-PMRust-Students/project-laurasandu13

Description

My project makes it possible to play Sudoku by inputting the numbers and moving from one cell to another by using a keyboard module. The game is visible on a webpage on the laptop. Games are previously added and players can choose what difficulty to play. Players will be able to start a new game, input numbers, use the undo and redo operations and check if their answers are correct.

Sudoku is a logic-based, combinatorial number placement puzzle. The objective is to fill the 9x9 grid with numbers so that each column, each row, and each 3x3 subgrid contain the numbers from 1 to 9 without repetition.

The game helps with cognitive stimulation by improving memory, concentration and logic, and also provides a calming effect and a sense of accomplishment.

Motivation

I have been playing Sudoku on and off since I was a little child, and over time, it became one of my favorite comfort games to play. The game is pretty easy and straightforward, and I thought it would be perfect to make it the subject of my project.

Architecture

alt text

Log

Before week 5 - 11 May

I had bought all necessary components way before and wired the Picos first. I flashed my debugger and then made sure everything worked by running the lab skeleton with the "Hello, world!" program.

Then I wired my keyboard module to make sure it worked properly, and wrote a program to get input from it in the terminal. After multiple tries and checks of the wiring and the code, I still didn't manage to do it.

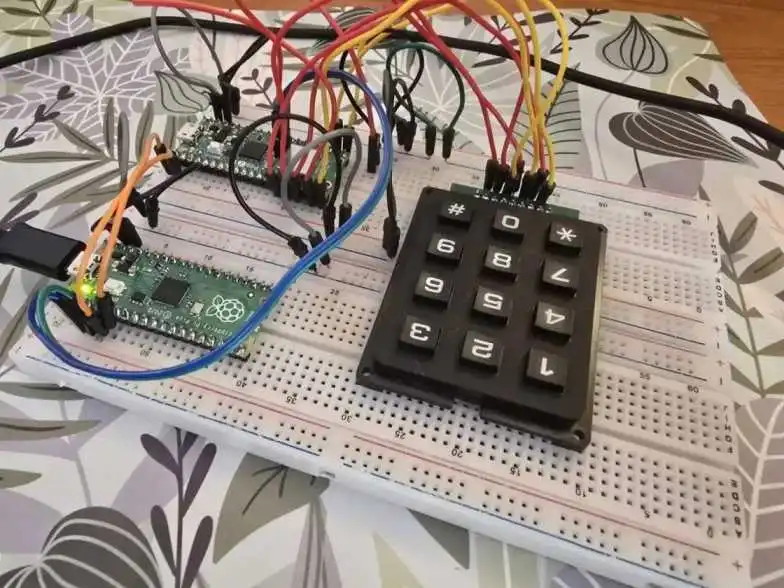

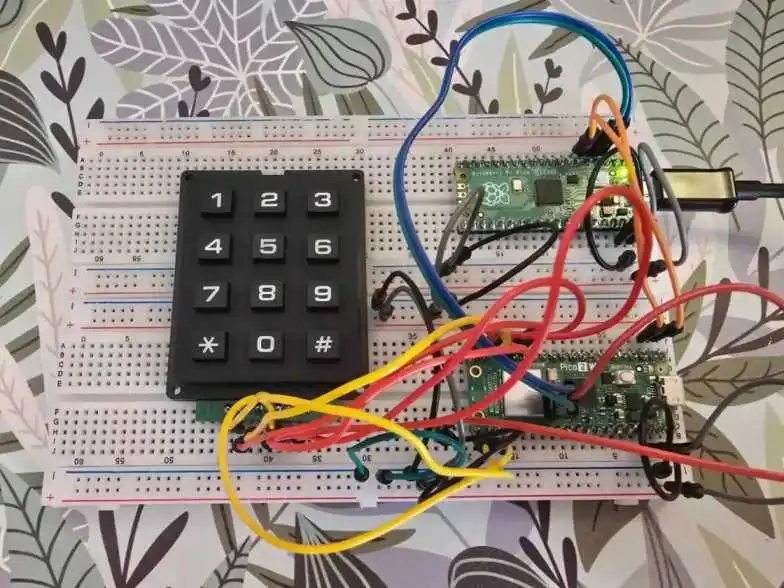

alt text

alt text

Week 5 - 11 May

This week I finally managed to make the keyboard module work by continuously trying to find other solutions and methods to make it work.

Then I got started on the game logic.

Week 12 - 18 May

Week 19 - 25 May

Hardware

  • Raspberry Pi Pico 2W - main microcontroller used for game logic
  • Raspberry Pi Pico - debugger
  • Keyboard module - number keyboard used for input and other controls

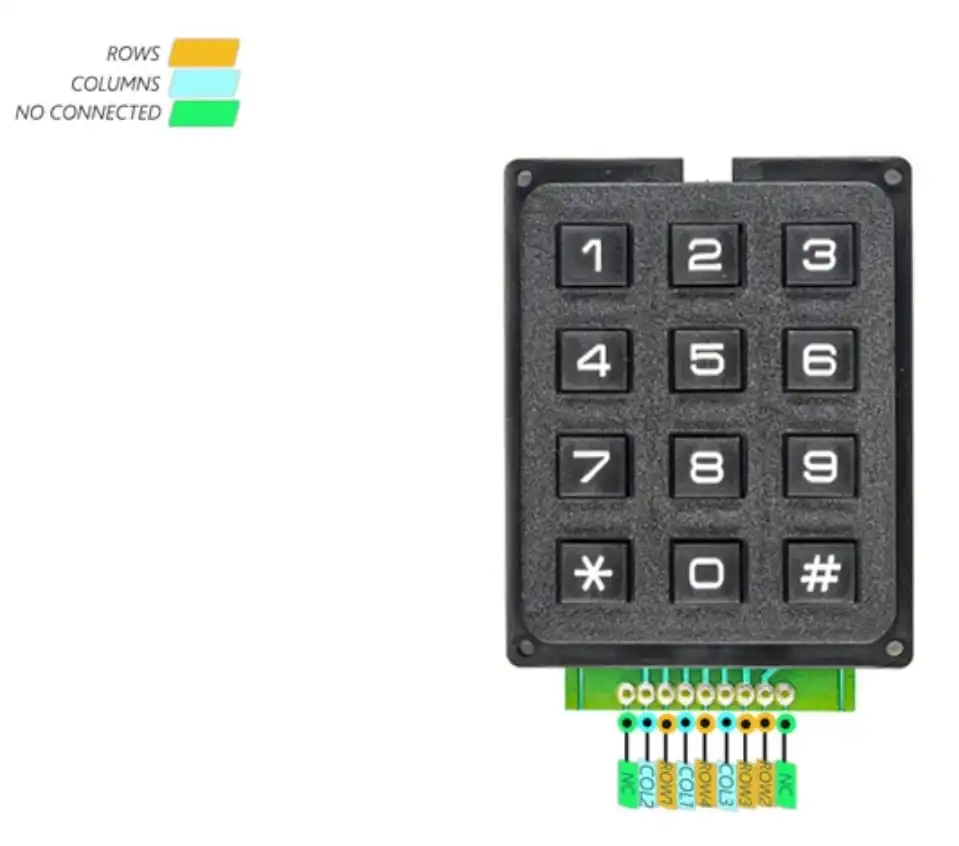

The pins of the keyboard module have a very interesting configuration. There are 9 pins, of which the first and last are NC (No Connect) pins. The remaining 7 pins each correspond to a row or a column. The picture below clearly shows the pin configuration.

alt text

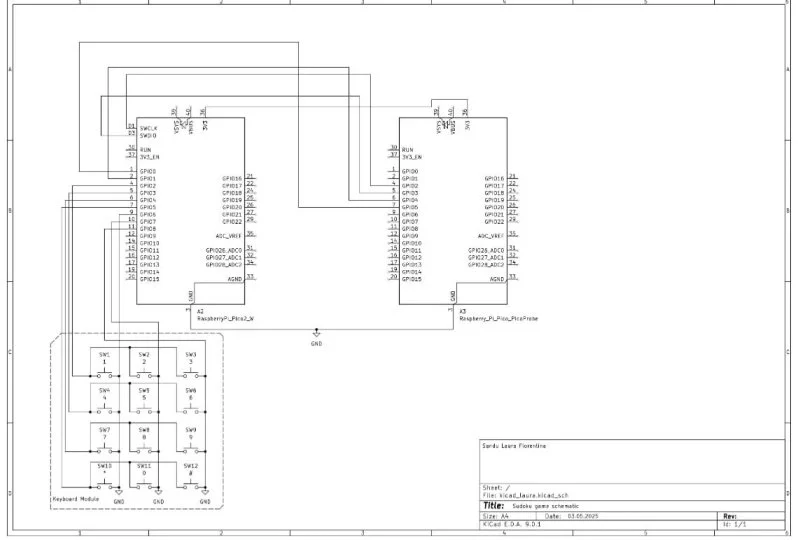

Schematics

alt text

Bill of Materials

DeviceUsagePrice
Raspberry Pi Pico 2WThe microcontroller39.66 RON
Raspberry Pi PicoThe debugger30 RON
Keyboard moduleInput and other functionalities18.44 RON

Total comes up to 88.1 RON.

Software

LibraryDescriptionUsage
embassy-rpHAL crate designed for the RP2040 and RP2350 microcontrollersgpio and uart for the keyboard module
embassy-timeused for timekeeping, delays and timeouts in embedded systemssyncronization of tasks
embassy-usbasync USB device stack for embedded devices in Rustconnectivity between pico and laptop
embassy-netno-std no-alloc async network stack, designed for embedded systemsnetworking
cyw43Rust driver for the CYW43439 wifi+bluetooth chipwifi connectivity
  1. Datasheet of Raspberry Pi Pico 2W
  2. Datasheet of keyboard module
  3. Embassy documentation
  4. Mathematics of Sudoku
