Sonar using ToF Distance Sensors
A Sonar using ToF Distance Sensors to detect foreign objects and deliver geographical information
Author: Abdulqader Albaidhani
GitHub Project Link: https://github.com/UPB-PMRust-Students/fils-project-2026-Albaidany
Description
My Project Idea: A sonar radar using a Time-of-Flight (ToF) distance sensor to detect foreign objects in an area, when an object enters the sonar's radius, an alert sound queue will occur, the sonar measures accross an area with both manual (using buttons) and automatic movements (using a button to switch modes).
Motivation
I chose to make this because I'm very passionate about Intel-gathering gadgets and I wanted to persue many more similar ideas, this is a concept I really found interesting and I wanted to replicate it.
Architecture
Control Layer: NUCLEO-U545RE-Q microcontroller running Rust with Embassy. Handles servo control (PWM), reads distance data via I2C from the sensor, processes button inputs, manages automatic/manual scanning logic, generates buzzer signals/sound queues, and streams radar data (angle + distance) to the laptop over USB.
Sensing Layer: VL53L0X Time-of-Flight (ToF) distance sensor mounted on a custom rotating platform. it measures distance in real time at the current angle using time-of-flight (ToF) technology, providing precise range data for radar visualization via laptop.
Actuation Layer: SG90 Micro Servo Motor driven by PWM signals from the MCU. Rotates the sensor across a 0°–180° sweep, allowing spatial scanning of the environment. movement supports both automatic scan and manual directional control via user input using buttons, when in manual mode and inactive for ~3 seconds, the system returns back to automatic sweeping mode.
Log
Week 11 - 11 May
Parts arrived and some we're faulty, needed time to reorder the parts and also adjusted some changes for what the project will have, costed extra time
Week 12 - 18 May
Ordered parts, displays etc but decided to use a GUI on my laptop, so the project needed some readjustments, I had push buttons for control on the prototype for testing
Week 14 - 25 May
Reviewing final issues with my code, the components worked fine but the GUI had trouble recognising the ToF
Hardware

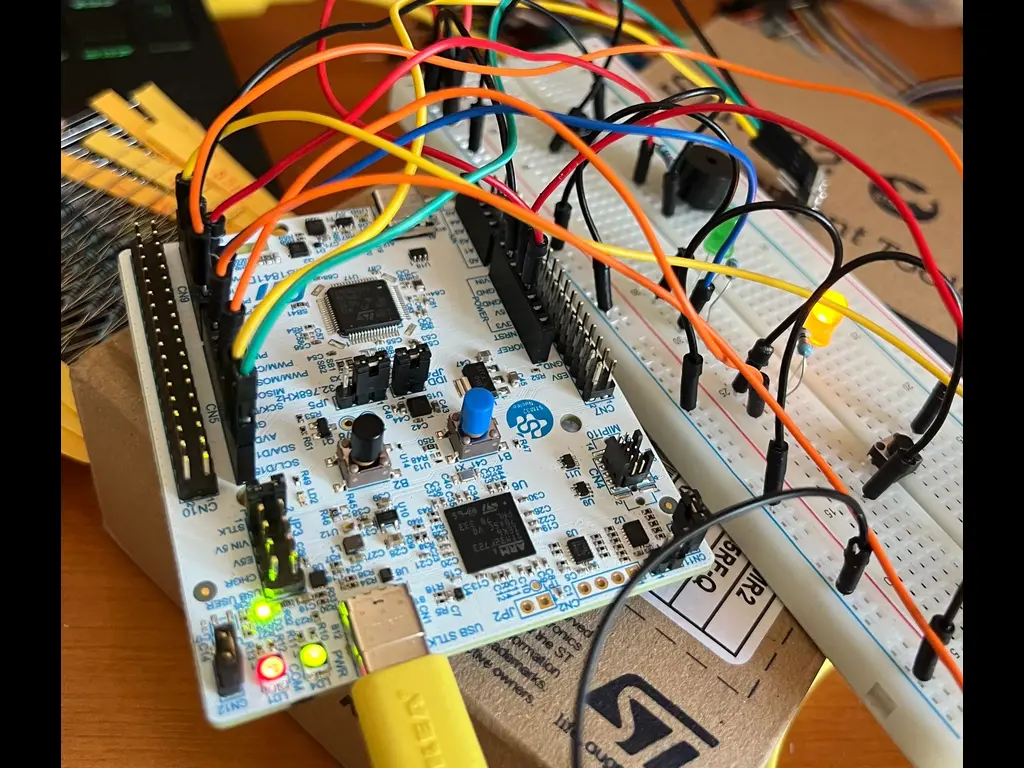

NUCLEO-U545RE-Q
USB cable
VL53L0X Time-of-Flight Distance Sensor Module
SG90 Micro Servo Motor
Passive Buzzer
Green LED
Red LED
Push buttons
Resistors
Breadboard(atm)
Jump wires
Schematics

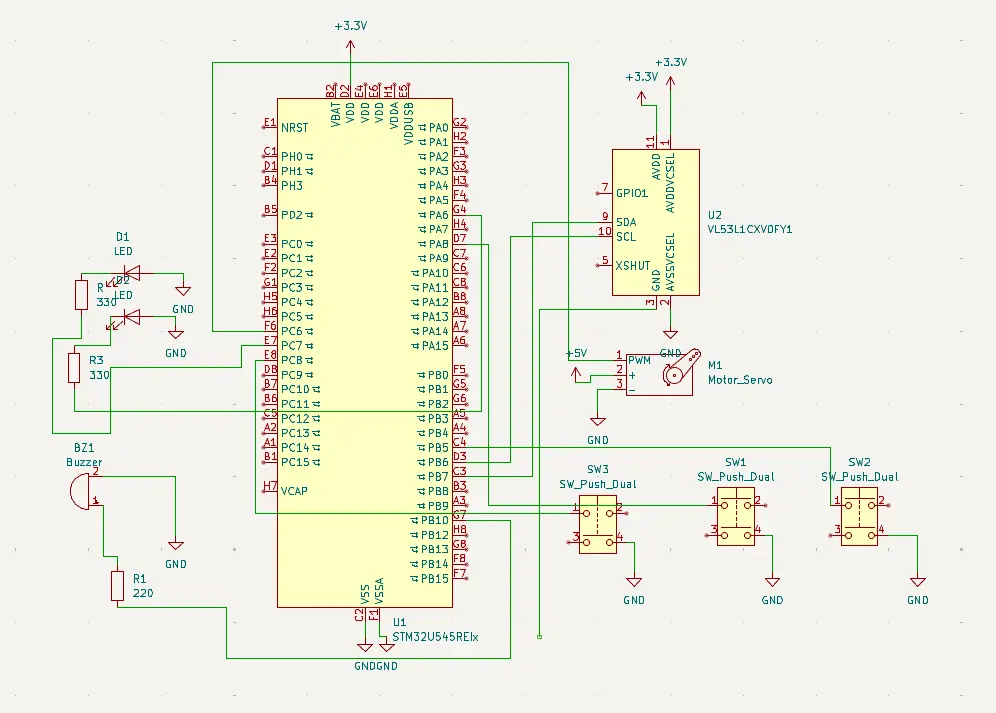

Hardware Schematic
Bill of Materials
| Device | Usage | Price |
|---|---|---|
| STM32 Development Board | The microcontroller | 105 RON |
| VL53L0X Time-of-Flight Distance Sensor | Distance Sensor | 25 RON |
| USB Cable | Cable for data transfer | 5 RON |
| SG90 Servo Motor | Sensor movement | 15 RON |
| Passive buzzer x3 | Sound queues | 2 RON |
| LEDs x4 | Visual queues | 4 RON |
| Buttons x3 | Manual controls | 5 RON |
| Resistors + Jumpers + breadboards | Supporting the circuit | 30 RON |
Software
| Library | Description | Usage |
|---|---|---|
| embassy-stm32 | Embassy HAL for STM32 microcontrollers | GPIO, timers, UART, sensor integration |
| embassy-executor | Async task executor | Running concurrent tasks (sensor read, servo control, USB streaming) |
| embassy-time | Async timers and delays | Servo sweep timing, debounce, 3s timeout logic |
| embassy-sync | Synchronization primitives | Sharing data between tasks (angle, distance, mode) |
| embassy-futures | Async utilities | Task coordination and control flow |
| embassy-usb | USB device stack (CDC ACM) | Sending radar data to laptop via USB |
| embedded-hal | Hardware abstraction traits | Generic interfaces for I2C, PWM, GPIO |
| vl53l0x custom drivers | Driver for VL53L0X sensor | Reading distance measurements over I2C |
| cortex-m | ARM Cortex-M support crate | Low-level MCU access |
| cortex-m-rt | Runtime for Cortex-M devices | Startup, interrupt vectors |
| heapless | Fixed-capacity data structures | Buffers for USB data (angle + distance) |
