AgriCheck
An agriculture-oriented multi-sensor reader.
Author: Stancu Stefanita-Ionut
GitHub Project Link: https://github.com/UPB-PMRust-Students/fils-project-2026-Stefan5419
Description
This project implements an IoT-based agriculture monitoring system that collects environmental data from field sensors, transmits it over LoRaWAN, and makes it accessible through a web application for visualization.
Motivation
I particularly choose this project because it offers a solution to my personal problems, and I figured out it may help other agriculture-oriented tech enthusiasts.
Architecture
The system follows a layered IoT architecture composed of multiple interconnected components responsible for data collection, transmission, processing, and visualization.
Main Components : Data Acquisition Layer (Sensor Node)
Responsible for collecting environmental data from field sensors and preparing it for transmission.
Communication Layer (LoRaWAN Network)
Handles long-range wireless transmission of data from the sensor node to the network infrastructure via LoRaWAN. Network Server (TTN)
Manages device authentication, payload decoding, and routing of data to external services.
Backend Layer
Processes incoming data, stores it in a database, and exposes it through APIs for further use.
Application Layer (Web Interface)
Provides a user-friendly interface for real-time monitoring and visualization of environmental data.
Log
Week 5 - 6
Finalized component research and ordered all necessary hardware. Waiting for delivery. Already had the microcontroller, some dummy thermistor and photoresistor and started testing software.

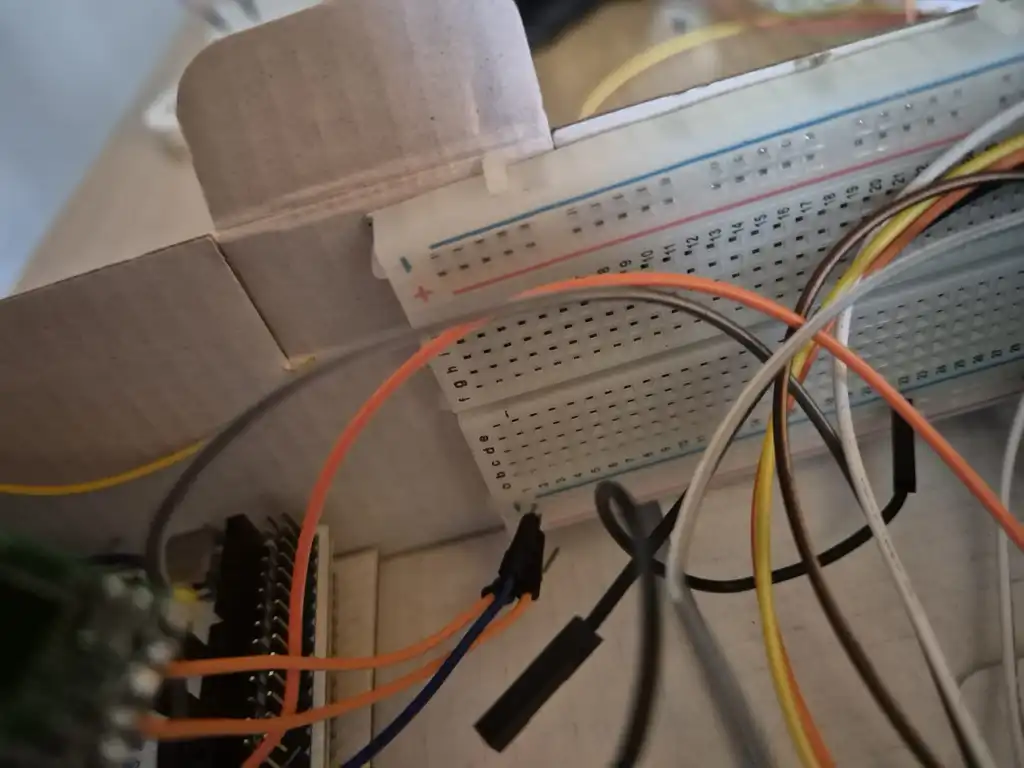

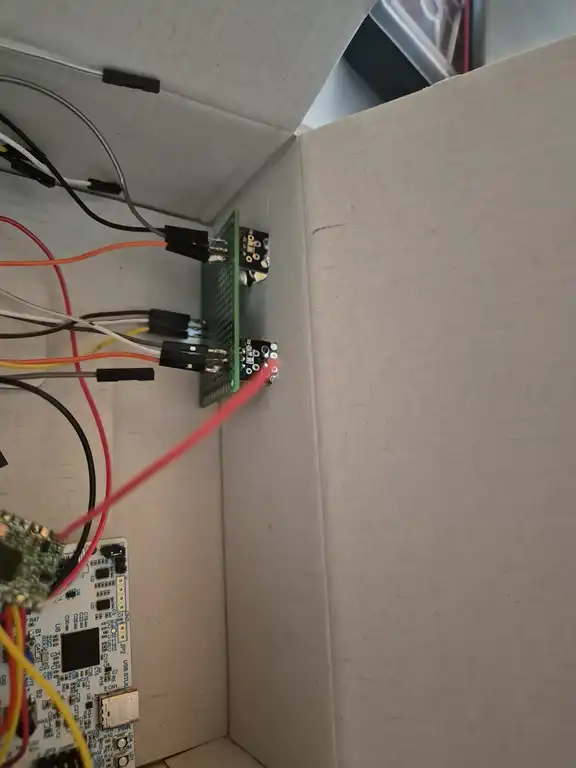

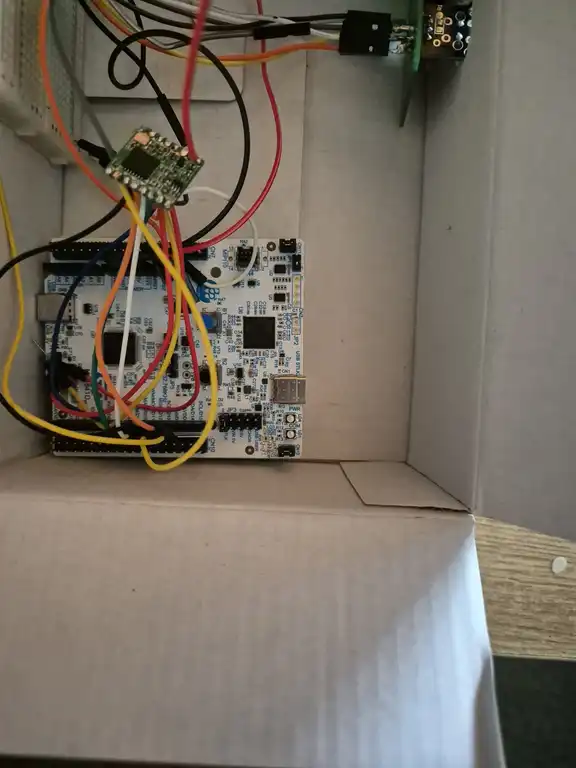

Hardware
Hardware Used STM32 microcontroller, environmental sensors (soil moisture, temperature, humidity, light), LoRa transceiver (SX1276/SX1262), and a LoRa gateway for wireless data transmission(the gateway is a public one which is hosted on TTN).
Schematics
Bill of Materials
| Device | Usage | Price |
|---|---|---|
| Nucleo STM32 | The microcontroller | BORROWED |
| Kit Arduino Intermediar | I will use some parts | 360 RON |
Kit components that will be used
- 1x Breadboard 830 tie-points MB-102
- 1x Breadboard power shield
- 1x Set of male-to-male jumper wires
- 1x Set of male-to-female Dupont wires
- 10K resistors
- 4.7K resistors
- 1x DHT11 temperature and humidity sensor
- 2x LDR 5516 photoresistors
- 1x NTC 10K thermistor
- 1x Water level sensor
- 1x 3.3V / 5V breadboard power supply module
- 1x 9V battery connector
- 2x PN2222A NPN transistors
- 2x 1N4007 diodes
Software
| Library | Description | Usage |
|---|---|---|
| stm32u5xx-hal | Hardware abstraction layer for STM32U5 | Access GPIO, SPI, I2C and peripherals |
| embedded-hal | Embedded hardware abstraction traits | Interface used by drivers and HAL |
| cortex-m-rt | Runtime for Cortex-M | Startup code and interrupt handling |
| cortex-m | Cortex-M support crate | Low-level CPU functionality |
| lorawan-device | LoRaWAN protocol stack | Handles OTAA, encryption and MAC layer |
| embassy | Async embedded framework | Low-power async task execution |
