CargoBot

Remote-controlled cargo robot with Bluetooth telemetry

info

Author: Andrei Rusanescu
GitHub Project Link: link_to_github

Description

CargoBot is a remote-controlled four-wheeled robot that carries cargo and navigates surfaces with imperfections. It is controlled from a laptop keyboard via Bluetooth and uses an STM32 Nucleo-U545RE-Q microcontroller programmed in Rust with Embassy-rs. It sends real-time telemetry data to a PC dashboard via Bluetooth, while simultaneously displaying information on an onboard OLED.

The central idea of the project is measuring and visualizing the impact of cargo load on motor performance: when the robot carries something heavy, the PID controller automatically increases the PWM duty cycle to maintain a constant speed. This compensation is observable live on the robot's OLED, on the PC dashboard, and through 3 LEDs (green/blue/red) that visually indicate the effort level.

Motivation

I am particularly interested in cars and networking. This project combines multiple peripherals studied in the lab (PWM, GPIO, I2C, UART (Bluetooth)) into a functional system. It is a challenge that clearly demonstrates technical effort - the difference in motor effort with and without cargo, and how to compensate for the load. It really excites me because I get to apply what I've learnt in electronics, microprocessor programming in Rust and really build a hardware product.

Architecture

Both the hardware and software diagrams are drawn in draw.io.

The system is organized around five main subsystems:

1. MCU (STM32 Nucleo-U545RE-Q) The central unit running all Embassy-rs async tasks. Coordinates all subsystems and shared state protected by Mutex.

2. Motor Subsystem The L298N dual H-bridge receives PWM signals from the STM32 and drives 4 DC motors (2 per channel, left/right side in parallel - skid steering). The two IR LM393 optical sensors read encoder disc pulses on GPIO interrupts and compute RPM per side.

3. Sensing Subsystem

• MPU-6500 (I2C, address 0x68): reads accelerometer + gyroscope data, combined via complementary filter to get a stable tilt angle
• 2x HC-SR04 (GPIO trigger/echo): front and rear obstacle detection
• 2x IR LM393 encoders: RPM feedback for PID

4. Communication Subsystem HC-06 Bluetooth module connected to STM32 via UART. Bidirectional: laptop sends raw keyboard characters (w, a, s, d, x, p), and the robot streams back high-efficiency text-based CSV telemetry (T,Load,Comp,Ax,Ay,Gz,Slope) at 10Hz to reduce microcontroller overhead.

5. Display & Indicators Subsystem

• OLED SSD1306 128x64 (I2C, address 0x3C, shared bus with IMU): displays active metrics like distance, encoder ticks, load %, slope, and current power mode.
• 3x LEDs (green/blue/red) on GPIO: visual indicator of motor effort based on PWM duty cycle
• PC Dashboard: Tkinter window with embedded real-time Matplotlib animation canvas displaying streaming physics graphs.

Embassy-rs Async Tasks:

Task	Frequency	Responsibility
encoder_left_task / right	Interrupt-driven	Counts wheel encoder slot edges using GPIO EXTI triggers.
distance_task	16 Hz	Triggers and measures echo responses from front/rear HC-SR04 sensors.
imu_task	50 Hz	Reads raw Accel/Gyro data from MPU-6500 over I2C and stores scaled values.
pid_task	5 Hz	Performs Low-Pass filtering, fast auto-calibration, and runs the PI speed compensation loop.
telemetry_task	10 Hz	Formats data into a CSV string and transmits it wirelessly over UART.
display_task	2 Hz	Refreshes the on-board OLED graphics.
bluetooth_task	Async Rx	Listens for incoming control characters from the PC.

Navigation & PI Compensation Logic: Instead of basic tilt-triggering, CargoBot uses an intelligent sensor-fusion approach:

1. Auto-Calibration: On first throttle, it calibrates the ideal steady-state wheel RPM.
2. Load Tracking: A Low-Pass filter smooths out encoder noise. If the filtered RPM drops below the reference value due to cargo weight or friction, the robot calculates the exact Load %.
3. PI Regulation: A Proporțional-Integral loop dynamically scales up the PWM duty cycle to maintain constant cruise speed, bypassing inertia during start-up via a dedicated blind window.

Peripheral Usage:

Peripheral	Component	Usage
PWM	STM32 -> L298N	Motor speed control (0–100% duty cycle)
GPIO Output	STM32 -> HC-SR04 trigger	pulse to trigger ultrasonic
GPIO Input Interrupt	HC-SR04 echo -> STM32	Measure echo duration -> distance
GPIO Input Interrupt	LM393 encoders -> STM32	Count pulses -> compute RPM
GPIO Output	STM32 -> LEDs R/G/B	Load indicator: green (ECO mode), blue (DRIVE mode), red (SPEED mode)
GPIO Output	STM32 -> L298N IN1-IN4	Motor direction control
I2C (shared bus)	STM32 -> MPU-6500 (0x68)	Accelerometer + gyroscope for tilt angle
I2C (shared bus)	STM32 -> SSD1306 (0x3C)	OLED telemetry display
UART	STM32 -> HC-06	Bidirectional Bluetooth: commands in, telemetry out

Log

Week 6 - 12 Apr

Ordered most of the components needed.

Week 13 - 19 Apr

Assembled the mechanical parts (wheels, motors, car platform).

Week 20 - 26 Apr

Working on the Schematic in KiCad. Tested individual components: bluetooth module, display, motors, distance sensors, LM393 speed sensors.

Week 27 Apr - 3 May

Ordered Li-Ion Samsung 18650 3.6V 3450mAh 8A batteries, a charger for the batteries, more male-female and female-female jumpers and a smaller breadboard (400 points).

Week 4 - 10 May

Soldered IMU and OLED display in the lab. Assembled final product. Started to write the software for the cargobot and tested it carrying another car. The car automatically stops when it detects an object at less than 15cm distance.

Week 11 - 17 May

Wrote even more software. Noticed that with adding more components, the responsiveness of the bluetooth commands degraded, so I had to debug a lot with the frequencies, which led me to activate the 16MHz crystal of the board to raise the frequency on i2c (for the display).

I had problems with the HC-SR04 distance sensors as well. They are placed back-to-back, which initially caused significant acoustic interference (cross-talk) because they were attempting to fire and update simultaneously at the same frequency. This ultrasonic overlap caused one of the sensors to constantly freeze or report false timeouts, as it would accidentally catch the stray echo generated by the opposite sensor.

To solve this limitation, I refactored the software into a single, synchronized Embassy async task (distance_task). Instead of running concurrently, the sensors are now triggered sequentially: the system measures the front distance, waits for a deliberate 30ms gap to let any residual acoustic noise dissipate, and only then triggers the rear sensor. This simple interleaving completely eliminated the sensor locking issue.

Week 18 - 24 May

Finalized the closed-loop motor control by deploying a tuned PI velocity regulator ($K_P=35, K_I=15$) and locking the noisy derivative term ($K_D$) to zero. Implemented a $7/8$ exponential moving average Low-Pass filter to smooth out encoder slot jitter, a rapid auto-calibration routine that samples the target cruise RPM during the first seconds of movement and a 1.6-second startup blind window to stop the controller from confusing physical takeoff inertia with cargo load.

Added another 2 compensation channels:

1. Yaw-rate correction (lateral drift): The gyroscope $G_z$ axis is sampled at every PI loop tick (5 Hz). When the robot is commanded straight (w / s) and a non-zero yaw rate is detected, caused by an asymmetrically placed load or a difference in motor friction, the controller applies an asymmetric PWM correction. The yaw mixer is disabled during deliberate turns (a / d) via the IS_TURNING flag so that it does not fight the intentional rotation. It takes a few tries to get the right values.

2. Slope detection and pre-emptive compensation: The accelerometer $A_y$ axis (aligned with the driving direction after the IMU mounting orientation was taken into account) is read each PI tick. The slope compensation is clamped to +/- 30 % PWM. The result is published to SLOPE_COMP and added symmetrically to both wheels in the motor loop, acting as a feed-forward term that pre-emptively increases the duty cycle before the PI loop has had time to react to the RPM drop.

Built the custom companion PC interface using Python Tkinter and Matplotlib to handle low-latency key debouncing and animate the 10Hz text-based CSV telemetry streams (T,Load,Comp,Ax,Ay,Gz,Slope) in real time.

Hardware design

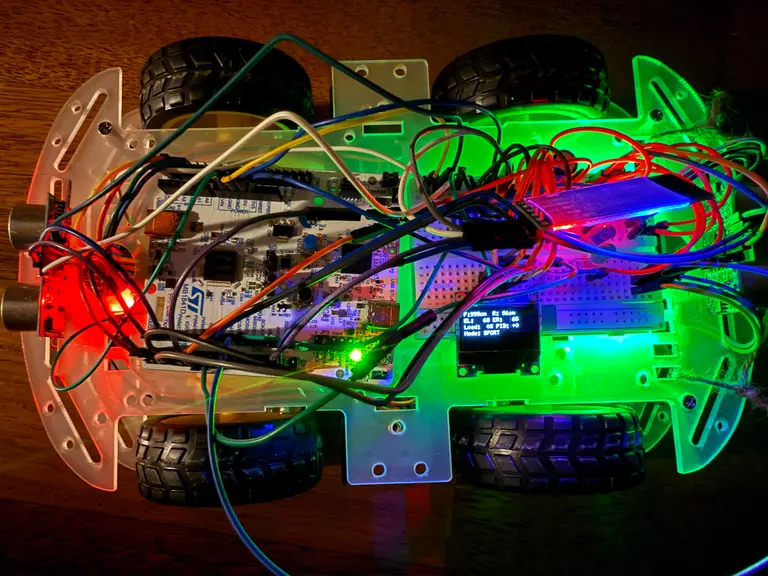

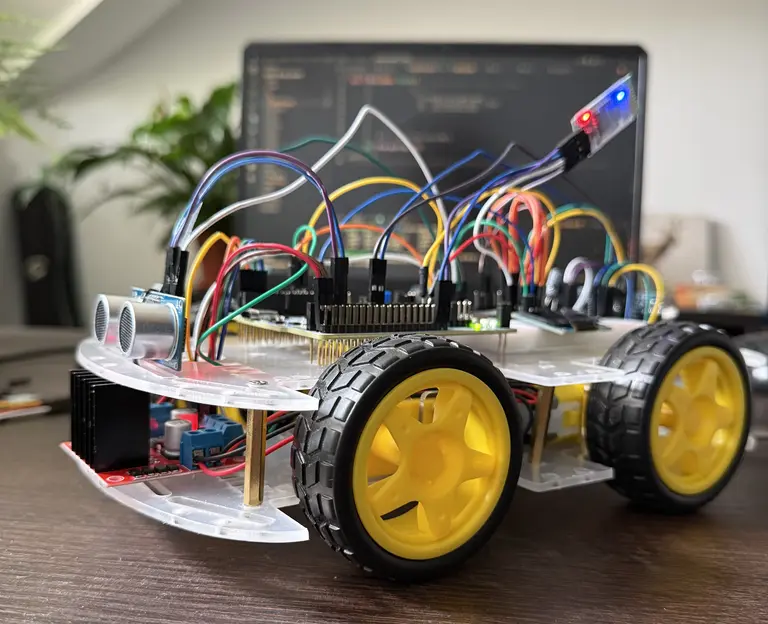

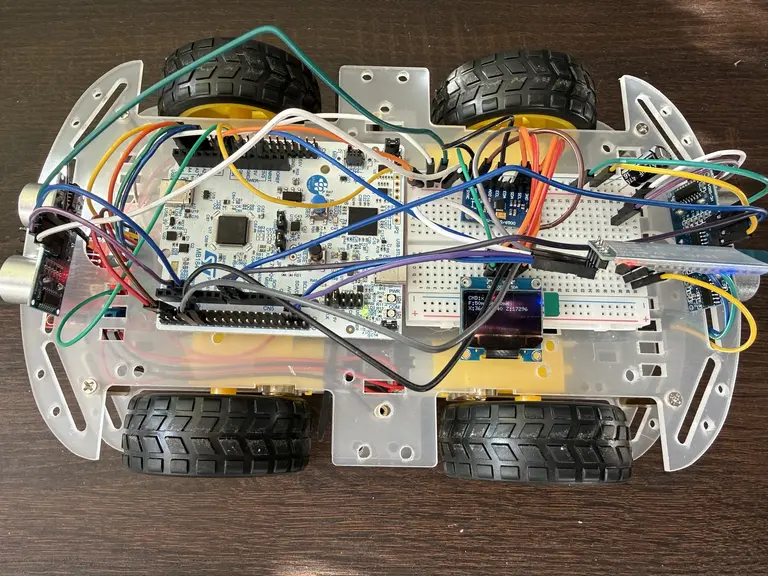

The robot is built on a 4WD chassis powered by four DC motors (3–6V) wired in parallel per side (skid steering) and driven by an L298N dual H-bridge. Speed is dynamically regulated via 1kHz PWM signals from the STM32, while directional control is managed through discrete GPIO pins. Two LM393 IR optical sensors read wheel encoder discs to provide real-time RPM feedback, which serves as the primary metric for the PI load-compensation algorithm.

For environmental and physics telemetry, an MPU-6500 IMU communicates over a shared I2C bus to track linear accelerations ($A_x$, $A_y$, $A_z$) and yaw rate ($G_z$). Spatial awareness is handled by two HC-SR04 ultrasonic sensors placed at the front and rear, utilizing timed GPIO echo interrupts for obstacle detection. Visual feedback is split between an onboard SSD1306 OLED display for standalone diagnostics and an HC-06 Bluetooth module that streams raw, high-frequency CSV telemetry packets to a custom Python dashboard on a PC.

Schematics

KiCad Schematic:

Software design

The entire program is #![no_std] and #![no_main]; there is no heap, no operating system, and no RTOS scheduler, thus all concurrency is cooperative and driven by async/await.

Concurrency Model

Embassy runs a single-threaded cooperative executor. Every task is a Rust async fn marked with #[embassy_executor::task]. Because only one task runs at a time and tasks yield at every .await point, shared state can be safely exchanged through lock-free atomics (AtomicU32, AtomicI32, AtomicBool) for single-value reads/writes, and through an embassy_sync::channel::Channel for the command queue. The I2C bus, which is shared between the IMU and the OLED, is protected by an embassy_sync::mutex::Mutex<ThreadModeRawMutex, I2c> stored in a StaticCell so that its 'static lifetime can be passed to multiple tasks.

I chose lock-free atomics because they are fast they can be used with ease in more then 2 functions (if I used a channel instead of atomics it would have gotten very complicated very fast). Atomics ar fast and simple.

Global Shared State - Atomic Variables

All inter-task communication goes through a flat set of static atomics. The table below maps each atomic to the task that writes it and the tasks that reads it.

Atomic	Type	Writer	Readers	Meaning
DIST_FRONT_CM	AtomicU32	distance_task	display_task, main (motor)	Front HC-SR04 distance (cm)
DIST_REAR_CM	AtomicU32	distance_task	display_task, main (motor)	Rear HC-SR04 distance (cm)
EMERGENCY_STOP_FRONT	AtomicBool	distance_task	main (motor)	True when front obstacle < 15 cm
EMERGENCY_STOP_REAR	AtomicBool	distance_task	main (motor)	True when rear obstacle < 15 cm
ENC_L_TICKS	AtomicU32	encoder_left_task	pid_task, display_task	Cumulative left encoder ticks (20 per slot)
ENC_R_TICKS	AtomicU32	encoder_right_task	pid_task, display_task	Cumulative right encoder ticks
IMU_AX	AtomicI32	imu_task	pid_task, telemetry_task	Accel X x100 (% of 1 g)
IMU_AY	AtomicI32	imu_task	pid_task, telemetry_task	Accel Y x100, LPF-filtered
IMU_AZ	AtomicI32	imu_task	telemetry_task	Accel Z x100
IMU_GZ	AtomicI32	imu_task	pid_task, telemetry_task	Yaw rate x100 (deg/s), LPF-filtered
LOAD_PERCENT	AtomicU32	pid_task	display_task, telemetry_task	Load % (0 = no load, 100 = motor blocked)
PID_COMPENSATION	AtomicI32	pid_task	display_task, telemetry_task	Symmetric PI output (% PWM delta)
PID_COMP_LEFT	AtomicI32	pid_task	main (motor)	Left wheel comp after yaw mixer
PID_COMP_RIGHT	AtomicI32	pid_task	main (motor)	Right wheel comp after yaw mixer
SLOPE_COMP	AtomicI32	pid_task	main (motor), display_task, telemetry_task	Feed-forward slope compensation (% PWM)
PWM_LEFT_ACTUAL	AtomicU8	main (motor)	pid_task	Actual left PWM duty sent to L298N
PWM_RIGHT_ACTUAL	AtomicU8	main (motor)	pid_task	Actual right PWM duty sent to L298N
POWER_MODE	AtomicU8	main (motor)	display_task, telemetry_task	0=ECO, 1=DRIVE, 2=SPORT
PID_CALIBRATED	AtomicBool	pid_task	display_task, telemetry_task, pid_task	True once reference RPM is locked
REFERENCE_RPM_X100	AtomicU32	pid_task	pid_task	Calibrated cruise RPM x100
IS_TURNING	AtomicBool	main (motor)	pid_task	True during a/d commands

The single channel:

Channel	Type	Sender	Receiver	Meaning
CMD_CHANNEL	Channel<_, u8, 4>	bluetooth_task	main (motor)	Raw command bytes: w s a d x p

Software diagram

Bill of Materials

Device	Usage	Price
STM32 Nucleo-U545RE-Q	Main microcontroller (Cortex-M33), runs all Embassy-rs tasks	0 RON (provided by university)
4x DC motors (3-6V), encoder discs, wheels	Wheels and motors for the CargoBot	40 RON
2x IR Speed Sensor LM393 x2	Optical encoder reading, counts pulses from encoder discs to compute RPM	16.22 RON
L298N Dual H-Bridge	Motor driver, controls speed (PWM) and direction of both motor sides	8.96 RON
MPU-6500 Accelerometer & Gyroscope	6-axis IMU, measures tilt angle via complementary filter (I2C, 0x68)	9.92 RON
HC-06 Bluetooth Module	Bidirectional wireless UART, receives keyboard commands, sends telemetry JSON	25.13 RON
OLED SSD1306 0.96" I2C	On-board display, shows RPM, tilt, obstacle distance, state, load level (I2C, 0x3C)	14.01 RON
2x HC-SR04 Ultrasonic Sensor x2	Obstacle detection, front and rear, GPIO trigger/echo	18.80 RON
18650 Battery Holder 2S	Holds 2x 18650 cells in series, 7.4V output for L298N and STM32	5.74 RON
2x Li-Ion Samsung 18650 3.6V 3450mAh 8A	Batteries to provide voltage for the motors and for the board	63 RON
Battery charger	Charges the Li-ion batteries	35 RON
3x LED (red/yellow/green) + resistors	Visual motor effort indicator	0 RON (owned)
Female-Female jumper wires	Wires for connections	7.73 RON
Male-Female jumper wires	Wires for connections	7.73 RON
Male-Male jumper wires	Wires for connections	0 RON (owned)

Software

Library	Description	Usage
embassy-stm32	Async HAL for STM32U5	PWM, I2C, UART, GPIO, Timer drivers
embassy-executor	Async task executor	Spawning and running concurrent tasks
embassy-time	Async timers and delays	Task scheduling at fixed frequencies
embassy-sync	Synchronization primitives	Mutex and Channel for inter-task shared state
ssd1306	OLED SSD1306 driver	I2C display rendering
embedded-graphics	2D graphics library	Drawing text and shapes on OLED
heapless	No-alloc data structures	String/Vec without heap allocation
defmt + defmt-rtt	Logging framework	Debug output via probe
libm	Math functions (no_std)	atan2, sqrt for complementary filter
Python pyserial	Serial communication	PC-side script to receive telemetry and send commands over Bluetooth
Python matplotlib + tkinter	Desktop GUI & Plotting	Live dashboard with telemetry and PID

Links

1. Embassy-rs documentation
2. STM32 Nucleo-U545RE-Q user manual
3. MPU-6500 datasheet
4. SSD1306 OLED driver crate
5. L298N datasheet
6. HC-SR04 ultrasonic sensor guide
