PicoSudoku

A microcontroller-powered Sudoku game, designed for the Raspberry Pi Pico 2

info

Author: Ionescu Mihai-Cosmin
GitHub Project Link: https://github.com/UPB-PMRust-Students/proiect-COSSS02

Description

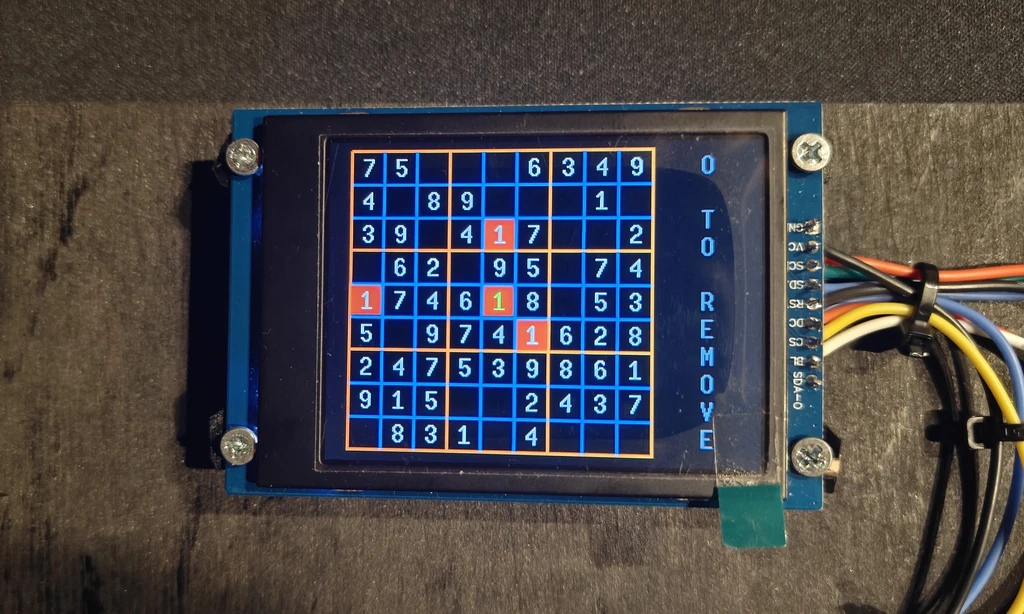

This project aims to provide a simple and engaging way to play the classic logic game Sudoku, featuring three difficulty levels. The game grid is displayed on an LCD screen connected to a Raspberry Pi Pico 2 microcontroller. The user can interact with the game using intuitive hardware controls: a joystick for navigating between cells and a keypad for number input. The system includes input validation and displays a warning inside the grid for invalid moves. At the end of the game, the time needed to beat the puzzle is displayed.

Video Demonstration

Sudoku

Motivation

This project combines my passion for logic puzzles with the challenge of creating a clean, self-contained implementation. Sudoku's structured nature makes it an ideal candidate for an embedded environment project.

Architecture

Diagram

Log

Week 5 - 11 May

  • Environment setup for picotool flashing
  • USB logging for log messages instead of using a debugger
  • Keypad initialization
  • Keypad polling for input reading
  • Joystick initialization
  • Joystick polling for determining the direction when it's moved
  • Multiplexed Input between the Keypad and the Joystick

Week 12 - 18 May

  • SPI bus initialisation
  • Display initialisation
  • Display comatibility with embedded-grpahics library

Week 19 - 26 May

  • Sudoku board generation
  • Sudoku control using input peripherals
  • Sudoku grid drawing
  • Startup screen with difficulty selection
  • Warnings inside grid for invalid moves
  • Game over ending screen
  • Timer for how long it takes to beat the level

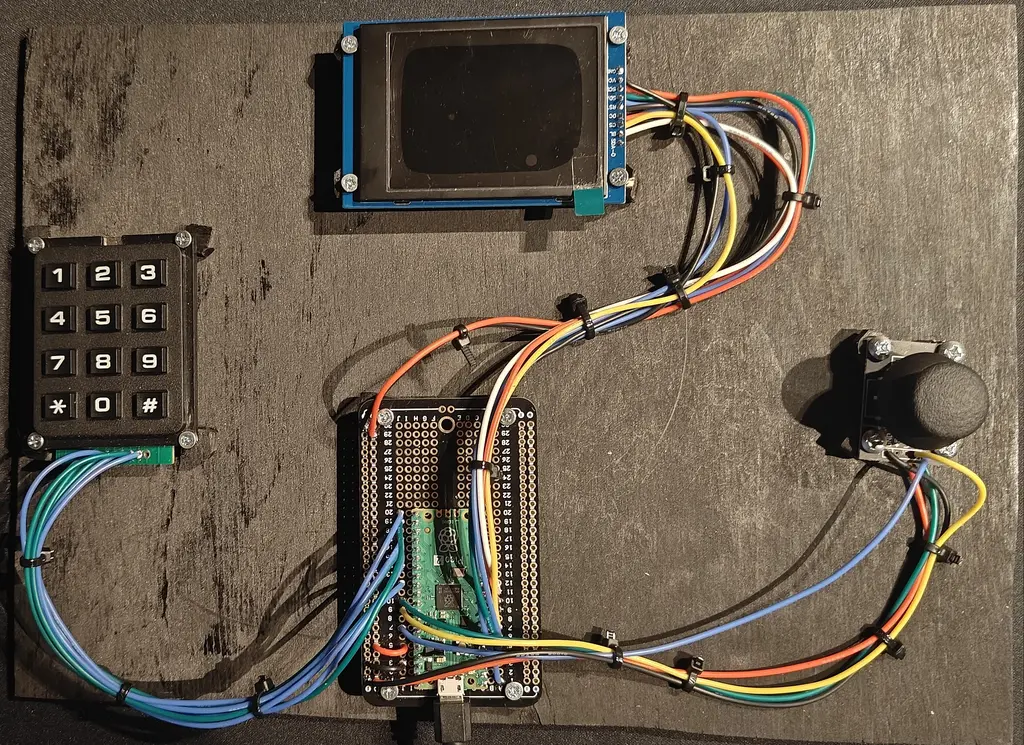

Hardware

The project uses four main hardware components:

  • Raspberry Pi Pico 2 as the microcontroller
  • 2.8-inch ST7789 SPI TFT LCD to display the Sudoku grid
  • 3x4 matrix keypad for number input
  • dual-axis XY joystick for navigating between cells.

Hardware

Schematic

Schematic

Bill of Materials

DeviceUsagePrice
Raspberry Pi Pico 2The microcontroller42 RON
2.8 Inch ST7789 LCDThe display38 RON
3X4 Matrix Switch KeypadThe keypad12 RON
Dual-axis XY Joystick ModuleThe joystick8 RON

Software

LibraryDescriptionUsage
embassy-rpRaspberry Pi Pico HALGPIO, SPI, ADC setup
embassy-syncSynchronization primitivesMutex for SPI bus
embassy-timeTime handling mechanismsMeasure Game Runtime
embassy_usb_loggerUSB implementation of the log crateDebugging & logging player actions
mipidsiCrate for generic display driversDisplay driver for ST7789
embedded-graphics2D graphics libraryDrawing primitives to the display
picorandFast random number generator libraryGenerating the Sudoku game board
micromathEmbedded-friendly math libraryCommon arithmetic operations
  1. Creating a Raspberry Pi Pico ST7789 based coloured text display
  2. Pico Sudoku Puzzle Generator
  3. Driver for reading from standard 3X4 keypads
