05 - Serial Peripheral Interface

This lab will teach you how to communicate with hardware devices using the Serial Peripheral Interface (SPI) protocol, in Embassy.

Resources

1. Raspberry Pi Ltd, RP2350 Datasheet

   • Chapter 12 - Peripherals
     • Chapter 12.3 - SPI

2. Invensense, MPU-6500 Six-Axis (Gyro + Accelerometer) MEMS MotionTracking™ Device

3. Paul Denisowski, Understanding SPI

Serial Peripheral Interface (SPI)

The Serial Peripheral Interface (or SPI) is a communication protocol used between microcontrollers and peripheral ICs (integrated circuits). It allows synchronous transfer of data between one main device and one or more sub devices (e.g. sensors). The main device is the one that dictates the communication.

Data transmission

SPI transmission usually uses 4 lines:

• CLK - clock - generated by the main device - subs use it to synchronously read and write to the bus
• MOSI - Main Out Sub In - used to carry data from the main device to all the subs
• MISO - Main In Sub Out - used to carry data from the active sub to the main device
• CS - chip select - selects the sub to be activated, or the sub that the main wants to communicate with
  • one wire per sub
  • inactive subs will disconnect from the MOSI and MISO lines

info

The communication is full-duplex. This means that data is transmitted in both directions simultaneously. With that being said, during data transmission, both the main and the sub must write to the MOSI/MISO wires, no matter if that data is relevant or not.

note

SPI is most commonly implemented in a 4-wire configuration. However, there is also a 3-wire configuration, where the MOSI and MISO lines are common. This makes the communication half-duplex, since data can be sent only in one direction at a time.

Transmission example

1. main sets CS to LOW - the sub that the main wants to communicate with is activated - all other subs are already disconnected from MOSI and MISO lines as their CS line is not active
2. main writes the first bit on the MOSI line, and, simultaneously, sub writes the first bit on the MISO line
3. main starts the clock
4. on rising edge
   • main reads data from the MISO line
   • sub reads data from the MOSI line
5. on falling edge
   • main writes data to the MOSI line
   • sub writes data to the MISO line
6. repeat steps 4 and 5 until main stops the clock

note

Whether steps 4 and 5 happen on rising/falling edge depends on the CPOL configuration of the SPI.

In the image above, the main first exchanges data with the first sub by setting its corresponding CS line to low. After it finishes transmission with sub 1, it deactivates it and, afterwards, initiates communication with the second sub by setting its CS line to low. Notice that both main and sub read and write to the MOSI/MISO line simultaneously.

SPI modes

SPI has 4 different modes which define when data is read or written. These modes can be configured through CPOL and CPHA by changing the SPO and SPH bits of the SSPCR0 register.

Mode	CPOL	CPHA	Clock polarity in idle state	Clock phase used to read and/or write data
0	0	0	Logic Low	Data read on rising edge and written on falling edge
1	0	1	Logic low	Data read on the falling edge and written on the rising edge
2	1	0	Logic high	Data read on the falling edge and written on the rising edge
3	1	1	Logic high	Data read on the rising edge and written on the falling edge

CPOL	Clock polarity	defines when the clock is considered idle, or when no transfer is occurring
CPHA	Clock phase	defines when the data bit is read and when it is written: depends on CPOL

Daisy Chaining

Daisy chaining is an SPI configuration through which the sub devices are linked together as such:

The MOSI line connects the main device only to the first sub. Then, the MISO output of the first sub ties to the MOSI input of the second sub, and so forth. The final sub in the chain ties to the MISO line of the main device. All CS lines are common, therefore all subs are active concurrently.

For example, if main wants to communicate with the second sub, it will:

• send its data through the MOSI line to the first sub
• the first sub will send the data to the second sub, through the common wire
• once the second sub receives the data, it will send its response to the third sub
• at the end of the chain, the last sub will send the data back to the main device through the MISO line

DMA

When it comes to standard communication protocols that rely on MMIO, it would be inefficient to rely on the MCU itself to handle all of these data transfers. This is why the Direct Memory Access (DMA) is used. Its purpose is to offload the MCU by dealing with simple transmission to and from peripherals, and whenever it finishes a transfer, it raises an interrupt.

SPI in Embassy

In Embassy, we can use the SPI both blocking and asynchronously. The following example will be using the asynchronous version.

warning

The SPI can also be used synchronously, but this means that for every transfer, the thread will be blocked, as we found out in the previous lab.

First, we initialize the peripherals.

let p = embassy_rp::init(Default::default());

Next, we create the configuration for the SPI. We can set the clock frequency, polarity and phase (the SPI mode).

let mut config = spi::Config::default();
config.frequency = 1_000_000;
config.phase = spi::Phase::CaptureOnFirstTransition;
config.polarity = spi::Polarity::IdleLow;

Once we have the configuration, we can initialize the MISO, MOSI and CLK pins.

let miso = p.PIN_X;
let mosi = p.PIN_Y;
let clk = p.PIN_Z;

Now we can create our SPI instance. The example uses the SPI0 channel, but others can be used. Being an asynchronous SPI, it also needs a pair of DMA channels, one that handles the transmission of data, and one that handles the receiving of data.

let mut spi = Spi::new(p.SPI0, clk, mosi, miso, p.DMA_CH0, p.DMA_CH1, config);

info

To figure out which pins work with SPI and what channels they are associated with, you need to take a look at the pinout of the Raspberry Pi Pico and the lab board schematic.

We also need a CS pin, that is simply a GPIO output pin. We will initialize it as such. Any pin can be used. For multiple subs, multiple pins will be initialized.

let mut cs = Output::new(p.PIN_N, Level::High);

Now we have set up the SPI, and can use it to communicate with the connected sub. To activate the sub, we need to set the cs pin to low.

cs.set_low();

Once we do this, we can use two buffers:

• tx_buf - used to store data to transmit to the sub via the MOSI line
• rx_buf - one to store data to receive from the sub via the MISO line

let tx_buf = [1_u8, 2, 3, 4, 5, 6];
let mut rx_buf = [0_u8; 6]; // dummy values, will be replaced by received data

note

rx_buf is mutable because the values inside the buffer will be replaced by the data received from the sub.

We then use the two buffers to make the transfer. The values in tx_buffer will be sent over the MOSI and the values received over the MISO will be stored in rx_buf.

spi.transfer(&mut rx_buf, &tx_buf).await;

Once we are done with the transfer, we set the cs line back to high to deactivate the sub.

cs.set_high();

Digital vs Analog sensors

Analog sensors

Up to now, during the labs, we have been using analog sensors (photoresistor and potentiometer). Analog sensors are just a transducer, which outputs a voltage depending on its measurement (light, temperature, etc.). This output needs to be read using an ADC and processed so that it can resemble something useful to us.

info

For example, for an analog temperature sensor, we would be getting a voltage reading that we need to convert to an actual temperature in Celsius by using a specific formula. This formula can usually be found in the datasheet of the analog sensor.

Digital sensors

For this lab, we will be using a digital sensor, which is an upgraded version of an analog sensor. It contains a transducer, but also an internal MCU with an ADC. This means that the sensor itself deals with the analog-to-digital conversion and the processing of the voltage reading, and exposes it through a digital interface of registers that can be accessed using a specific communication protocol (e.g. SPI, I2C etc.).

MPU-6500 Inertial Measurement Unit

The MPU-6500 is a digital gyroscope and accelerometer designed by InvenSense. It can be interfaced both with SPI and with I2C. This means that we can read the acceleration and angular velocity values directly from the registers of the MPU-6500 using SPI.

info

DATASHEET: Describes the chip and its capabilities.
REGISTER MAP: Describes how to configure and get values from the sensor.

MPU-6500 Memory Map

address (HEX)	Name	Access
1B	GYRO_CONFIG	R/W
1C	ACCEL_CONFIG	R/W
...
3B	ACCEL_XOUT_H	R
3C	ACCEL_XOUT_L	R
3D	ACCEL_YOUT_H	R
3E	ACCEL_YOUT_L	R
3F	ACCEL_ZOUT_H	R
40	ACCEL_ZOUT_L	R
...
43	GYRO_XOUT_H	R
44	GYRO_XOUT_L	R
45	GYRO_YOUT_H	R
46	GYRO_YOUT_L	R
47	GYRO_ZOUT_H	R
48	GYRO_ZOUT_L	R
...
75	WHO_AM_I	R

Registers

WHO_AM_I register - contains the ID of the MPU-6500

GYRO_CONFIG register - used for configuring the gyroscope

GYRO_CONFIG bits	Name	Description
[7]	XG_ST X	Gyro self-test
[6]	YG_ST Y	Gyro self-test
[5]	ZG_ST Z	Gyro self-test
[4:3]	GYRO_FS_SEL[1:0]	Gyro Full Scale Select
[2]	-	Reserved
[1:0]	FCHOICE_B[1:0]	Low Pass Filter Bypass

GYRO_FS_SEL[1:0]	Gyro Full Scale
00	$±250 °/s$
01	$±500 °/s$
10	$±1000 °/s$
11	$±2000 °/s$

ACCEL_CONFIG register - used for configuring the accelerometer

ACCEL_CONFIG bits	Name	Description
[7]	XA_ST X	Accel self-test
[6]	YA_ST Y	Accel self-test
[5]	ZA_ST Z	Accel self-test
[4:3]	ACCEL_FS_SEL[1:0]	Accel Full Scale Select
[2:0]	-	Reserved

ACCEL_FS_SEL[1:0]	Accel Full Scale
00	$±2 g$
01	$±4 g$
10	$±8 g$
11	$±16 g$

ACCEL registers - ACCEL_XOUT_H, ACCEL_XOUT_L, ACCEL_YOUT_H, ACCEL_YOUT_L, ACCEL_ZOUT_H, ACCEL_ZOUT_L - contain the acceleration

GYRO registers - GYRO_XOUT_H, GYRO_XOUT_L, GYRO_YOUT_H, GYRO_YOUT_L, GYRO_ZOUT_H, GYRO_ZOUT_L - contain the angular velocity

note

The values read from the sensor are 16-bit signed integers and must be interpreted according to the Full Scale selected. By default, they are both set to 0 ($±250 °/s$, $±2 g$).

g represents the gravity of Earth and is equal to approximately $9.80665 m/s^2$.

MPU-6500 wiring

The MPU-6500 has 5 pins:

Pin	Function
VCC	power source (3V3)
GND	ground
SCL	CLK line
SDA	MOSI line
EDA	external sensors data line
ECL	external sensors clock
ADO	MISO line
INT	interrupt line
NCS	CS line, active Low
FSYNC	synchronizing with external sensors

note

The MPU-6500 can also be interfaced through I2C, using the same pins but with different functions.

note

The MPU-6500 can also act as an I2C master and communicate with external sensors. This functionality will be ignored.

The Raspberry Pi Pico has two usable SPI channels: SPI0 and SPI1. Each channel has multiple sets of pins that can be used for CLK, MOSI and MISO. They are marked with pink in the pinout diagram.

info

TX = transmitter = MOSI

RX = receiver = MISO

tip

It is recommended to use the pins connected to the dedicated J12 & J13 headers on the lab board

Reading data from the MPU-6500 sensor using Embassy

To get the data we want from the digital sensor, we need to access its internal registers. The MPU-6500 has some rules when it comes to reading and writing to these registers, that must be extracted from the datasheets. Every sensor has different registers, and different ways of interfacing them, so reading the datasheet is usually required, especially when we don't have the leverage of using already existing libraries for these sensors.

First, we make sure our SPI is initialized correctly.

let p = embassy_rp::init(Default::default());

// default values are fine
let mut config = spi::Config::default();

let miso = p.PIN_X;
let mosi = p.PIN_Y;
let clk = p.PIN_Z;

let mut spi = Spi::new(p.SPI0, clk, mosi, miso, p.DMA_CH0, p.DMA_CH1, config);

// make sure to actually choose a pin
let mut cs = Output::new(p.PIN_N, Level::High);

In section 6.5 of the datasheet, we get the information we need in order to read/write to a register of the MPU-6500.

To know what is expected from it, the sensor needs to receive a control byte. This control byte contains the address of the register that we want to access, except the 7th bit of this address is changed:

• it will be 1 if we want to read the register
• it will be 0 if we want to write to the register

So, for example, if we wanted to read the register at address 0x1, we would need to send a control byte of 10000001, and if we wanted to write to it, we would send 00000001.

This way, we're sending a command to the sensor for it to know what to do: either send back the value of the register we requested or write to this register.

Reading a register

To read the value of a register, the main device (the RP2350) needs to first send a control byte containing the address of that register, with the 7th bit a 1. The sub device (the sensor) will then send a byte back, containing the value of the requested register.

cs.set_low();
let tx_buf = [(1 << 7) | REG_ADDR, 0x00]; // first value of buffer is the control byte, second is a *don't care* value
let mut rx_buf = [0u8; 2]; // initial values that will be replaced by the received bytes
spi.transfer(&mut rx_buf, &tx_buf).await.unwrap();
cs.set_high();
let register_value = rx_buf[1]; // the second byte in the buffer will be the received register value

info

Remember, SPI is full-duplex. When the main writes, the sub also writes, no matter if it has any relevant data to send or not. This is why the tx_buf and rx_buf both have 2 elements. First, the main will send the register address (tx_buf[0]) and the sub will send a dummy value back (stored in rx_buf[0]), at the same time. Then, the main will send a dummy value (tx_buf[1]) and the sub will send the value of the register (stored in rx_buf[1]).

tip

Once we send the address of a register we want to read, the sensor will continuously send back bytes containing the values of the consecutive registers. For example, if we ask to read REG_ADDR, the sensor will first send the register value at address REG_ADDR, then the value at address REG_ADDR+1, and so on, until we deactivate it.

cs.set_low();
let tx_buf = [(1 << 7) | REG_ADDR, 0x00, 0x00];
let mut rx_buf = [0u8; 3]; // three receive values instead of two
spi.transfer(&mut rx_buf, &tx_buf).await.unwrap();
cs.set_high();
let register_value = rx_buf[1]; // the second byte in the buffer will be the received register value (REG_ADDR)
let register_value_next = rx_buf[2]; // the third byte in the buffer will be the next received register value (REG_ADDR+1)

This is explained in section 6.5 of the datasheet.

Writing to a register

To write a value to a register, the main device (the RP2350) needs to first send a control byte containing the address of that register, with the 7th bit a 0. The main device then must send the value that it wants to write to that register.

cs.set_low();
let tx_buf = [!(1 << 7) & REG_ADDR, value_to_write]; // value_to_write is to be replaced with the 8-bit value that we want to write to this register
let mut rx_buf = [0u8; 2]; // we are not expecting any relevant information to be received, but we still need to receive dummy values anyway
spi.transfer(&mut rx_buf, &tx_buf).await;

Screen

ST7735 TFT Screen Controller

The ST7735 features a 128x160 screen and an integrated SD card reader. For now, we will ignore the SD card reader and focus on the screen.

Because writing an SPI driver for the ST7735 would be out of the scope of the lab, we will be using the one provided by the mipidsi crate.

use embassy_embedded_hal::shared_bus::blocking::spi::SpiDevice;
use embassy_sync::blocking_mutex::{Mutex, raw::NoopRawMutex};
use embassy_time::Delay;
use display_interface_spi::SPIInterface;
use mipidsi::models::ST7735s;
use mipidsi::options::{Orientation, Rotation};


let mut screen_config = embassy_rp::spi::Config::default();
screen_config.frequency = 32_000_000u32;
screen_config.phase = embassy_rp::spi::Phase::CaptureOnSecondTransition;
screen_config.polarity = embassy_rp::spi::Polarity::IdleHigh;

let screen_rst = Output::new(p.PIN_X, Level::Low);
let screen_dc = Output::new(p.PIN_Y, Level::Low);
let screen_cs = Output::new(p.PIN_Z, Level::High);

let spi = Spi::new_blocking(p.SPI0, clk, mosi, miso, screen_config);
let spi_bus: Mutex<NoopRawMutex, _> = Mutex::new(RefCell::new(spi));
let display_spi = SpiDevice::new(&spi_bus, screen_cs);

let di = SPIInterface::new(display_spi, screen_dc);
let mut screen = mipidsi::Builder::new(ST7735s, di)
    .reset_pin(screen_rst)
    .orientation(Orientation::new().rotate(Rotation::Deg180))
    .init(&mut Delay)
    .unwrap();

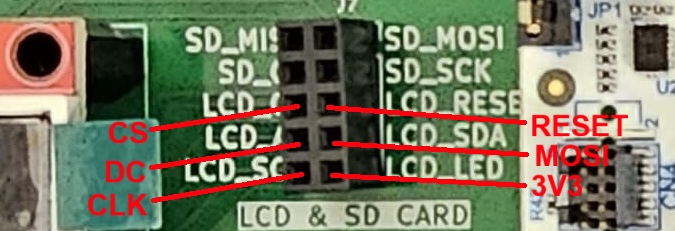

Make sure to wire the pins on J9 according to the pins chosen in the code and the picture below.

Embedded Graphics

Because mipidsi only provides a very primitive way to draw on the screen, by setting individual pixels, we will be using the embedded_graphics framework. This library enables us to do more complex things, such as rendering image files, drawing shapes and displaying text.

use embedded_graphics::{
    mono_font::{MonoTextStyle, ascii::FONT_6X10},
    pixelcolor::Rgb565,
    prelude::*,
    text::Text,
};

screen.clear(Rgb565::BLACK).unwrap();

let style = MonoTextStyle::new(&FONT_6X10, Rgb565::WHITE);
Text::new("Hello!", Point::new(20, 20), style)
    .draw(&mut screen)
    .unwrap();

tip

Make sure to check out the documentation.

Exercises

1. Connect the MPU-6500 as described in the wiring configuration (1p)
2. Read and create a debug log with the WHO_AM_I register. Does the result match the data sheet? (1p)

tip

Take a look at the Reading data from the MPU-6500 sensor using Embassy section.

note

Use the provided lab skeleton as a base.

3. Get the acceleration and angular velocity readings from the sensor.

• Configure the full scale as $±2 g$ for the acceleration and $±1000 °/s$ for the angular velocity (2p)
• Read the raw values for the X axis of the accelerometer and print them in a loop. (2p)

note

To configure the full scale, just set the *_FS_SEL bits and leave the rest as 0.

tip

Both the acceleration and the angular velocity are measured over 3 axis, resulting in signed 16-bit big-endian values. Each value is split into 2 registers: *_H and *_L.

To compute the RAW values, we need to read both registers and reconstruct the 16-bit value, as such:

val = i16::from_be_bytes([val_h, val_l]);

• Read and print the rest of the values. (1p)

4. Print the actual value of the accelerations (in $m/s^2$) and the angular velocities (in $°/s$) (1p)

tip

Make use of the values configured in the full scale fields.

5. Show the values on the screen. Use both the sensor and the screen on the same SPI channel. This means that the two devices will be subs in the same common configuration, and therefore will use the same CLK, MOSI and MISO pins, with separate CS. (1p)

tip

For this, we will need to initialize the sensor to use the same SPI bus as the screen. For this, we can use an Embassy driver called SpiDevice, which will allow us to connect both the screen and the sensor in the same SPI configuration! Since the screen is already using a blocking SPI, we will use it when creating our SPI sensor device, like this:

// Import the Trait in order to be able to use imu_spi.transfer()
use embedded_hal_1::spi::SpiDevice as _;

let mut imu_spi = SpiDeviceWithConfig::new(&spi_bus, imu_cs, imu_config);
// Note: you no longer need to manually set the chip select pin when using imu_spi.transfer()

note

The formatting machine for transforming floating point numbers into strings is much more complex than the integer one. Displaying the values in floating point format would increase the .text size by over 15%.
Because of this, it is recommended to manually convert the values to fixed point integers when creating the buffer for the display, as such:

let mut buf = heapless::String::<10>::new();
core::write!(&mut buf, "{}.{}", f32_value as u32, (f32_value * 1000f32) as u32 % 1000).unwrap();

You can write all values in the same buffer. Use \n in the format string to write on separate lines.

tip

The video buffer does not automatically clear after each write. In order for the text to not overlap over time, clear the screen before drawing.

6. Did you notice that, when resting the board on the table, the acceleration over the z axis indicates the acceleration caused by Earth's gravity? Using this fact, if kept still, you can determine the absolute pitch and roll of the sensor. Create a small game where a ball rolls on the screen depending on the tilt. (1p)

info

You are not required to simulate gravity and acceleration in the game. Moving the circle proportional to the tilt angle is enough.

tip

Compute the pitch and roll as such:

let pitch = f32::atan2(acc_y, f32::sqrt(acc_x * acc_x + acc_z * acc_z)).to_degrees();
let roll = f32::atan2(-acc_x, f32::sqrt(acc_y * acc_y + acc_z * acc_z)).to_degrees();

Make sure to add micromath = "2.1.0" to the project Cargo.toml dependencies.

tip

Check out the example for drawing a circle.

note

In order to increase the framerate, make sure to decrease the delay.

Clearing the whole screen takes time. In order to optimize further, instead, draw a black circle over the old one before computing the new location.
